See part 30 in the diagram
( Grid squares measure 1x1 inch )
Motor Pulley - 60 Hz.
$46.90
In Stock
In Stock
Get this part fast. Average delivery time via standard shipping: 1.8 days.
PartSelect Number PS11744884
Manufacturer Part Number WP8066184
Manufactured by
Whirlpool
Product Description
Motor Pulley - 60 Hz. Specifications
Sold individually.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Will not tumble | Noisy
This part works with the following products:
Dryer, Washer Dryer Combo.
This part works with the following products:
Whirlpool, Kenmore, Maytag, KitchenAid.
Part# WP8066184 replaces these:
AP6011686, 3389627, 3394341, 3401143, 694871, 8066184, 8578565, W10290525, W10290531, W10299847, W10402909, WP8066184VP
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Manuel
January 8, 2018
I'm replacing the belt but i notice the plastic by the the motor pulley is damage since is an old dryer can i leave without this part.
For model number Rex4634kq1
Hello Manuel, Thank you for your inquiry. It is not usually recommended as it protects the shaft. You can purchase it with the pulley, part# WP8066184. Hope this helps!
3 people found this helpful.
Was this helpful?
Thank you for voting!
Lesley
May 8, 2018
I cant get the old one off, what do i do?
Hi Lesley, Thank you for the question. If the pulley is stuck and can not be unscrewed, you can try some WD-40 or similar products. If the pulley is not able to be removed, you may need to replace the motor. Hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Adrienne
August 5, 2018
I just replaced the idler wheel and started the dryer and burning plastic smell. I opened the dyer up again and noticed there is a plastic thing behind the motor pulley. What is the number for that part? Why would it melt?
For model number LEQ9558KQ1
Hi Adrienne, Thank you for your question. Unfortunately I could not say as to why this part melted. The only thing that I could think of would be that the belt was installed incorrectly and so it slipped and with friction melted that plastic piece. That plastic part is only available with the motor. So to replace it, you would have to replace your motor. I hope that helps. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Related Parts:
Kevin
April 29, 2019
Wp8066184 is the motor pulley compatible with a dryer model # mde3706azw?
For model number MDE3706AZW
Hello Kevin, Thank you for contacting us. I have researched the model you have provided and have found that unfortunately Maytag is not selling the pulley separate from the motor assembly part number PS11739459. Thank you for your question!
1 person found this helpful.
Was this helpful?
Thank you for voting!
J
December 8, 2019
Does this pulley have left hand threads counter-clockwise to tighten, clockwise to loosen?
Hello J, Thank you for the question. You will need to turn Counter Clockwise to loosen the pulley. Hope this helps!
Was this helpful?
Thank you for voting!
Rick
March 10, 2020
Will this fit mde6400ayw dryer motor?
For model number MDE6400AYW
Hello Rick, Thank you for the question. The Motor Pulley for this model is not sold separate from the motor. The Motor will need to be replaced. We hope this helps.
Was this helpful?
Thank you for voting!
Related Parts:
William
August 14, 2021
Que motor pelea es compatible con este modelo admirar. Ya que enrosca para la izquierda e comprado y ni me sirven ya que enrosca para la derecha. Por favor cual seria compatible. Gracias.
For model number Admiral. MOD NO ADE7005AYW
Hola William, gracias por tu consulta. Mostramos el motor de esta secadora como parte # PS11739459. Espero que esto ayude.
Was this helpful?
Thank you for voting!
Related Parts:
Part Videos

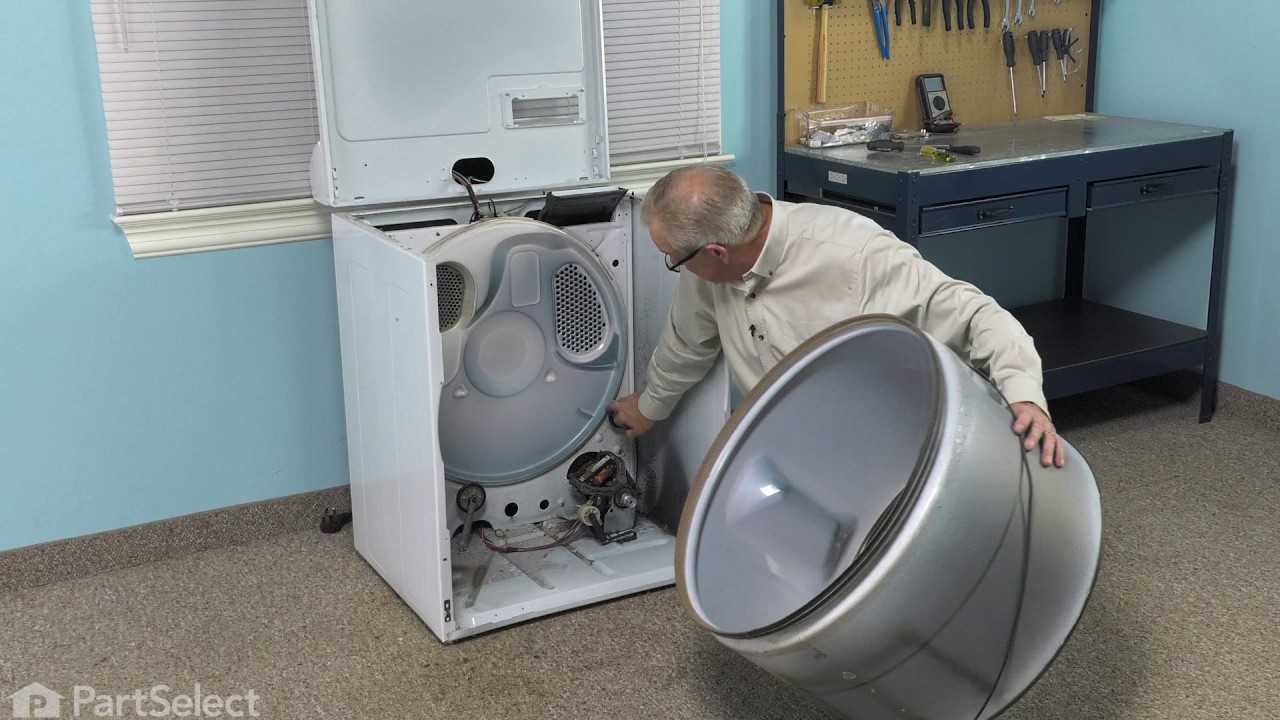

Replacing your Whirlpool Dryer Motor Pulley - 60 Hz.
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 2 reviews.
What's this?
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Replaced a broken pulley.
Half of my pulley was broken off so there were no wrench flats to take it off. I was able to remove it using Channel Locks and the 7/16 wrench shown in the video.
Hint: Use a one gallon ice cream bucket to hold up the drum while connecting the belt. It makes it much easier and gives you more clearance.
Hint: Use a one gallon ice cream bucket to hold up the drum while connecting the belt. It makes it much easier and gives you more clearance.
-
Brian from IMLAY CITY, MI -
Difficulty Level:Very Easy -
Total Repair Time:15 - 30 mins -
Tools:Nutdriver, Pliers, Screw drivers, Wrench set -
Parts Used:WP8066184
5 of 6 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Needed to repair and replace dryer motor pulley and pully
this was very was very easy. But I deviated from the You Tube instructions. One to release the motor pulley. I needed to use 2 adjustable wrenches for a longer lever. I needed to use a hammer to help release pulley. Second to remove the dryer cable I needed to use a small screw driver to aid in the release. ---- the part from the company was a perfect fit.
-
Rob from GAITHERSBURG, MD
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Wrench (Adjustable)
-
Parts Used:WP8066184
2 of 2 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer Reviews
Filter By Rating:
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Donna L - October 6, 2020
Part fit and I had the dryer repaired in an hour
Part was new condition and delivery was super fast!
Patrick A - October 26, 2018
Great part worked well
This took about 2 minutes to install, funny, I would not have needed it if the video on how to install the fan, hadn’t told me to put a wrench on this nut instead of the actual shaft
