Idler Pulley with Bracket W10837240

With the correct parts and watching the video, it was so easy to repair. We ordered the wrong part (for the Electric Dryer when it should have been for the Residential Dryer) but the return was easy and we got the new parts super fast. Next time I would probably look at the offending part first before ordering just to make certain. But we used a socket set and Philips screwdriver and actually had our teens do all the work for experience. Fixed the loud noise one and for all.

Rather than remove the front panels, door, control panel and drum, I noticed 1/4" metal screws on the back panel. There were approximately 6 holding the back panel in place. I did have to remove the top panel as well before removing the back. Once removed I had complete access to the broken idler pulley assembly. I immediately saw the broken pulley. I installed the new one with very little effort. Reset the belt according to instructions from the video. Reassembled, plugged in, hit start and enjoyed the sweet sounds of success. All told it took me about 20 minutes from start to finish.

I followed the repair Vedic and took the drum out and replaced the pulls and bracket. Very straightforward job. Dryer is now as quite as the first day we bought it.

Removed the back panel and saw that the idler pulley was worn out. It only took me 5min. To replace, it was very easy to replace.

Took off back of dryer Undid belt from belt adjuster pulled and took off adjuster put new one on redid belt and put back on dryer. Done

I simply followed the video and apart from a couple of areas that were not relevant to my model, everything went exactly as illustrated. The video is excellent and made the repair so easy.

The only issue I experienced was being short two rollers, as the parts diagram did not clearly show that there were two rollers in the back and two in the front.

A kit, with its own part number should be prepared that would show 4 rollers and belt as the recommended required parts.

It was an easy fix, I just did half the install a second time.

Checked this site for most likely needed parts and ordered. Located full repair manual inside unit after removing lid. Followed instructions in manual to take apart and remove the drum; took pictures at each removal step and used pill organizer to keep screws in correct order and quantity. The metal cylinder in the center of the idler pulley had ground away so the idler pulley with bracket was replaced. (There was a lot of metal dust that had to be cleaned.) One of the rollers did not turn smoothly so that was also replaced. After putting drum back in, reversed the steps to reassemble and referred to photos to make sure did in correct order and did not forget anything.

I removed the bottom access panel, with 2 hands i reached in behind the blower, i released the belt, i used a screwdriver to pop the retainer from the pully spindle, i removed and replaced the pully, i snapped the retainer back on and replaced the belt. I made sure the belt was on track and all was good. I put the bottom panel back on, it took all of 5 minutes. The hardest part was the retainer clip faces the rear of the dryer so you have to feel it. Also , the space is tight, use a smaller flathead screwdriver to get behind the clip, it will pop right off.

Take pictures along the way.
1. Remove lower front panel using screwdriver to lift up on tabs on top of panel.
2. remove door
3. unplug moisture sensor plugs
4. remove lint trap
5. on back of dryer, remove screws holding upper lid
6. slid up lid forward just a small amount, its hooked in towards the front of the upper lid. you will need to do this so you can can remove two screws under the lid holding the front panel of the dryer on
7. remove the front panel screws mentioned in step 6.
8. Remove lower front panel screws
9. remove front panel
10. reach into dryer at the bottom and release tension from belt pulley, sliding the belt off. (make a note of how the belt is routed around the drive and idler pulleys)

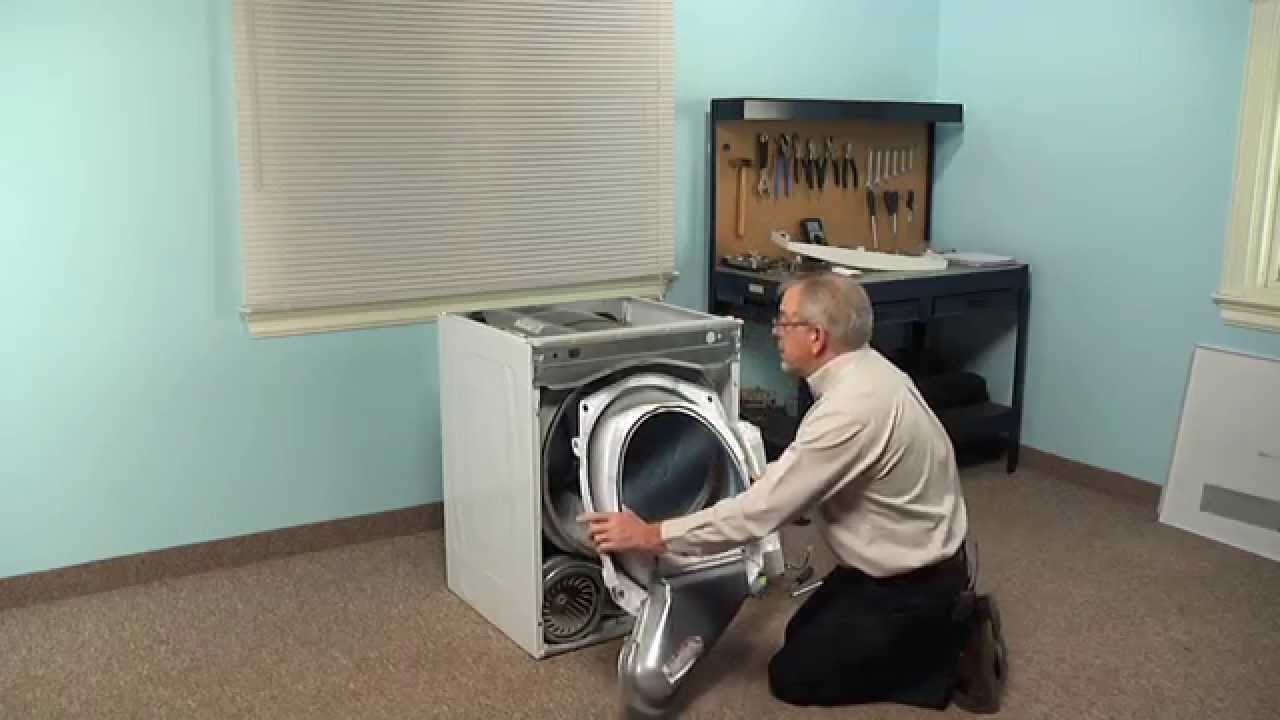

11. slide out tumbling drum
12. with drum removed, use socket wrench and socket to remove old idler pulley.
13. install new idler pulley
14. reinstall tumbling drum
15. slide belt back around tumbling drum, looping belt around drive pulley and around idler pulley.
16. When belt is installed, rotate drum a few revolutions to ensure belt rides correctly.
17. Reinstall front panel
18 slide top panel back into place and secure with screws from back
19. reinstall door
20. reattach moisture sensor plugs
21. reinstall lower panel

Simply followed the video that accompanied the part confirmation. Removed the top and front of the dryer. Removed the drum and belt. Unbolted (1 bolt) the Idler pulley and bracket and bolted on the new one. Reversed the sequence of disassembly and tried it out. The only minor difficulty was slipping the belt over the idler pulley after the drum was in place. This is where a second set of hands might be helpful to hold up the drum, while the other person puts the belt in place. Other than that, this was a simple repair and probably saved a couple hundred dollars for about 1.5 hours of my time. Thanks for the video...it was right on point, and made the job much easier.
