The drum roller for your dryer holds the drum in place while the drum turns on the support wheels. The drum roller is round with a bearing in the middle and measures approximately 3 inches in diameter...
This plastic adjustable dryer leg is used to support the weight and adjust the height of your dryer to keep it level. To install the leg, tip the dryer back and screw it into the bottom of your dryer ...
They are all strung with a coiled wire made of a nickel and a chrome alloy. This wire receives, but resists, a controlled electric current and as a result, the wire heats up. The heat produced is used...
Ask our experts a question about this model and we'll get back to you as soon as possible!
6 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Steven
November 11, 2019
I have recently had a power outage and after the dryer stopped working. The control panel is not functioning, seems like it isn't getting power to it. But when i open the dryer door the light is on, so it is receiving the desired amount of power. I have been researching on what the problem is, everything keeps saying its child lock with "cl" on the control panel. But the control panel does not have power/ anything that is lit up.
For model number DLEX7700VE
Hello Steven, thank you for your question. It sounds like the control panel has been fried. We would recommend replacing the user interface PartSelect Number PS11761255. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Brad
January 27, 2020
Dryer powers on but does not start to tumble when i press the start button it makes 3 clicking noises. I replaced the thermal fuse and still same problem
For model number DLEX7700VE
Hello and thank you for writing.
It certainly sounds like it could be a faulty drum support roller you should check the part(s) for signs of damage, and replace it as needed. Please see the part links related to this question just beneath this answer. We hope this helps. Please contact us anytime if you require further assistance.
Dryer will shut off randomly and the internal light will come on - it appears the door may be loose.
After opening and shutting the door, then pressing start, the dryer will resume.
What is the part number for the top right door bracket?
For model number DLEX7700VE
Hello Tom, Thank you for your inquiry. We have researched the model number you have provided and show the upper hinge brackets are part# PS11761374. From the description of your issue, it could be your door switch, the door catch, or the door strike. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
I have a new top for it need to know how to disconnect and reconnect the electrical part??
For model number DLEX7700VE
Hi George,

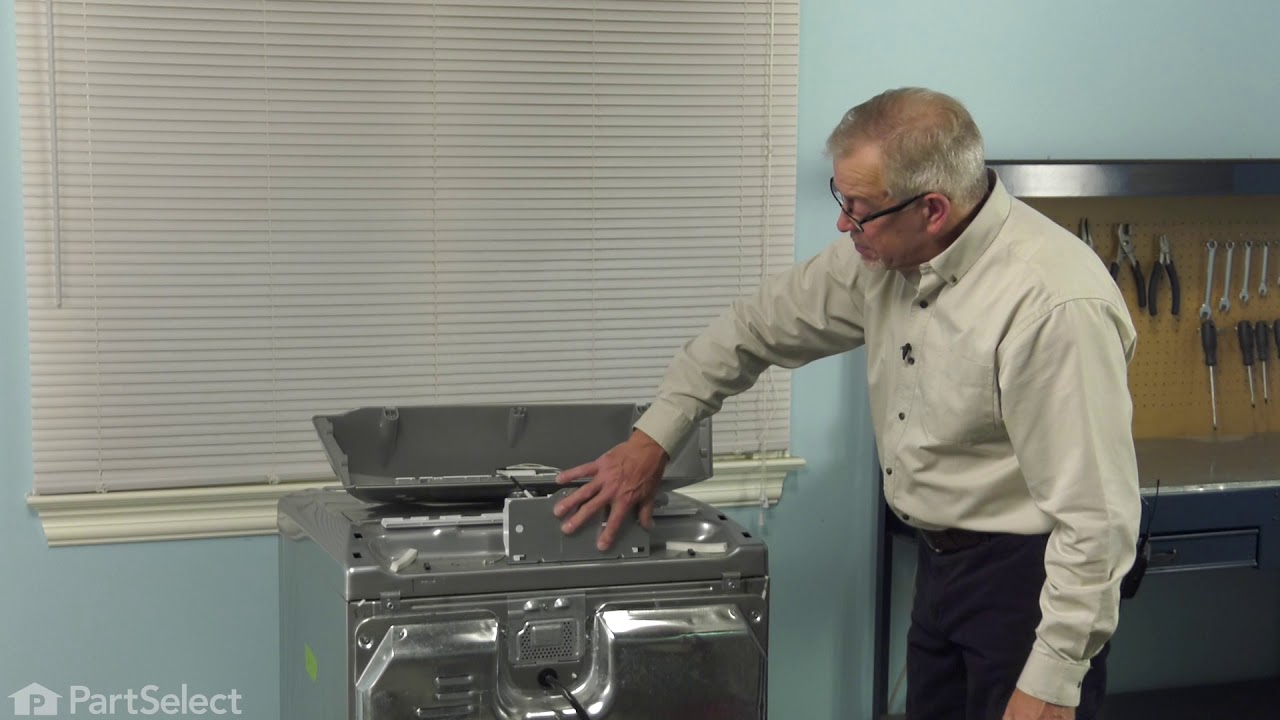

Thank you for your question. We have included a link to one of our YouTube videos that you may reference on how to access the electronic control board. We hope this helps! Good luck with the repair!
Was this helpful?
Thank you for voting!
Ronald
July 21, 2021
Not able to find thermostat for the list model. One taken from the dryer is showing info as 501993 t-o-d 60t11 z1603 l125-31c.
For model number DLEX7700VE
Hello Ronald, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS3530482. We hope this helps!
Had to replace front drum support rollers. Removed screws underneath top in back that held bracket that keeps top in place. Slid top towards rear and lifted up. Removed 4 screws that hold plastic front panel in place (inside..2 on each corner) Unplugged front panel electric plugs to remove panel. Opened door..removed 2 screws at bottom of door opening. Removed screws on top of front panel. Unplugged door switch plug. Removed front panel. Removed right front roller with 9/16th wrench for nut. Adjustable for back of stud. Lifted up on drum to get roller out. Reversed to install. Left roller a bit harder to get to stud. Removed and installed same as right side. Did not attempt to replace rear rollers. Have them if needed but very much more involved to replace.
I actually went to mr fix it on u tube. Great instruction on how to take dryer apart. First I unplugged the dryer. I found I could reach the heating system by removing the lint tube in the back of the dryer. I put my I phone with the light on inside the back of the dryer and tested the connections to see if all were working. The thermal fuse was not working. I removed the two wires , red on top and white on the bottom. Then used a small Phillips screwdriver to remove the two mounting screws and removed the fuse. I then used a vacuum to clear any lint from the back of the dryer and inside the dryer. This took me about an hour and a half. I did it this way because I did not want to disassemble the entire dryer to get to the components. I received the fuse in 3 days and tested it. It was fine. I then put it in the dryer screwed it in place, connected the wires. Replaced the lint tube. This took about 10 minutes. Dryer is running great.
Found disassembly video and watched several times. Suspected that one of the drum wheels had seized up. Found extreme volume of lint and hair inside unit as well as a dryer sheet melted on top of heating unit. Front left drum wheel was worn down from lint and hair jamming its movement. Video made it easy, not a really complicated piece of machinery. Replaced all 4 wheels due to normal wear on other three. Wanted to be sure drum evenly balanced on all 4. Parts came quickly and were easy to install. My sister and I did this together. Would not recommend doing it alone. Took time to vac and wipe down entire unit. Now it runs so quiet we have to look to see if it is operating. Got a brand new machine out of it, saved a couple of hundred dollars in repair bills, and found 11 cents inside the machine. For your own piece of mind, if you have had your dryer for several years, you need to open it up and clean it out. Its not hard... added note, we are both in our 60's... so if we can do it so can you.... Such a feeling of accomplishment, can't buy that in a store....
