Questions And Answers for JCB840EK1ES
Ask our experts a question about this model and we'll get back to you as soon as possible!
3 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Shane
December 14, 2021

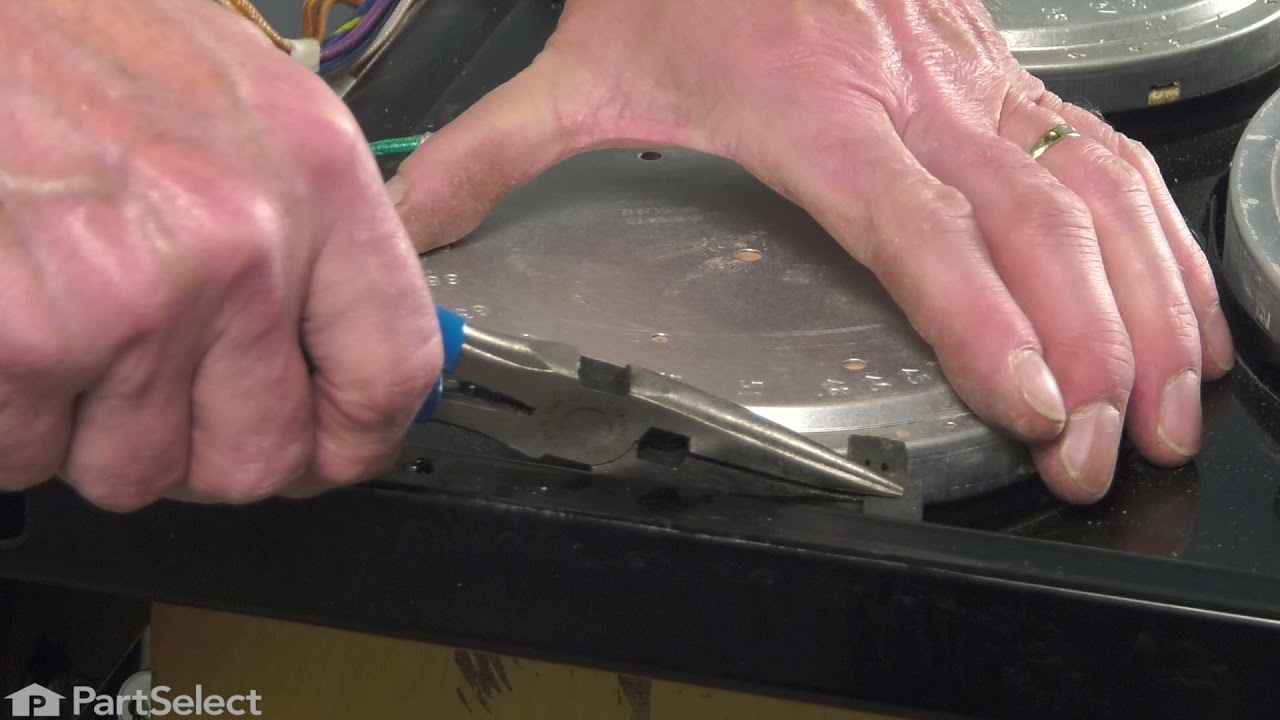

How do I get to the heating element under the glass top?
For model number JCB840EK1ES
Hello Shane, Thank you for the question. We have linked a video that may help. Thank you for your inquiry, good luck with this repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Charlie
February 8, 2024
Oven door won’t close all the way oven light stays on
For model number JCB840EK1ES
Hello Charlie, thank you for reaching out. According to our research, we would recommend checking the door hinges for any damage. If the hinges are fine, then the issue is most probably with the door latch assembly, part number PS11768033. You may need to replace it to solve the problem. We hope this helps!
Oven does not heat. Top elements all good. Temperature sensor 1080 ohms. Element testing conductivity. No visible control panel defects
Can you help
For model number JCB840EK1ES
Hello Tim, thank you for getting in touch. Based on the description that you have provided, the issue is most probably with the oven control board, part number PS16217411. You may need to replace it to fix the issue. We hope this solves your problem!
Removed six 1/4" hex nuts on rear of oven. Then through front/inside removed a single 1/4" hex nut to actually remove sensor. Unplug sensor connector, remove. Reversed steps, push oven back in place and plugged in. Tested oven function.
I started by Unscrewing the range top. 2 small screws. I took off the old piece by unclipping the piece . Then I color coded each wire so that I would know exactly where I would place the wires for the new part. 30 min maximum time spent changing the part. Please don't forget to unplug the range before you start.
Unplugged appliance and removed 5 screws on back of stove/oven and removed plate. Disconnected the sensor and unscrewed it on the inside of the oven. Pulled the cord through and replaced with new sensor. Replaced all parts and plugged in the appliance and tested. Worked great.
