JB655DT2BB General Electric Range - Overview
Sections of the JB655DT2BB
[Viewing 5 of 5]
Manuals & Care Guides for JB655DT2BB
Click to downloadKeep searches simple, eg. "belt" or "pump".
Dual Radiant Element - 9 Inch
PartSelect #: PS2321567
Manufacturer #: WB30T10133
This 9-inch radiant element sits under your cooktop and heats your pots and pans while you cook. If it’s not heating up or cooking unevenly, it’s time for a replacement. It’s the larger burner on your...
$133.39
Special Order
Light Bulb - 40W
PartSelect #: PS217532
Manufacturer #: 40A15
This 40-Watt light bulb is sold individually.
It is specially designed to withstand extreme temperatures, so this bulb is compatible with a variety of appliance types including refrigerators, ranges,...
$19.10
Special Order
Temperature Sensor
PartSelect #: PS10059162
Manufacturer #: WB21X22134
The temperature sensor detects the temperature within the oven cavity. If your oven is too hot, not heating evenly, or has little to no heat when baking, you may need to replace the temperature sensor...
$36.73
Special Order
Lens
PartSelect #: PS1020380
Manufacturer #: WB25T10041
This part is a replacement lens for your oven or range. The lens is red in color, and when the elements are turned on, the light behind the lens will turn on to inform the user that the element is, in...
$13.95
Special Order
REAR SUPPORT
PartSelect #: PS12709839
Manufacturer #: WB02X33180
This genuine GE drawer support is an original replacement part sourced from the manufacturer and is designed for use with electric ranges. Made of durable plastic, it attaches to the rear of the drawe...
No Longer Available

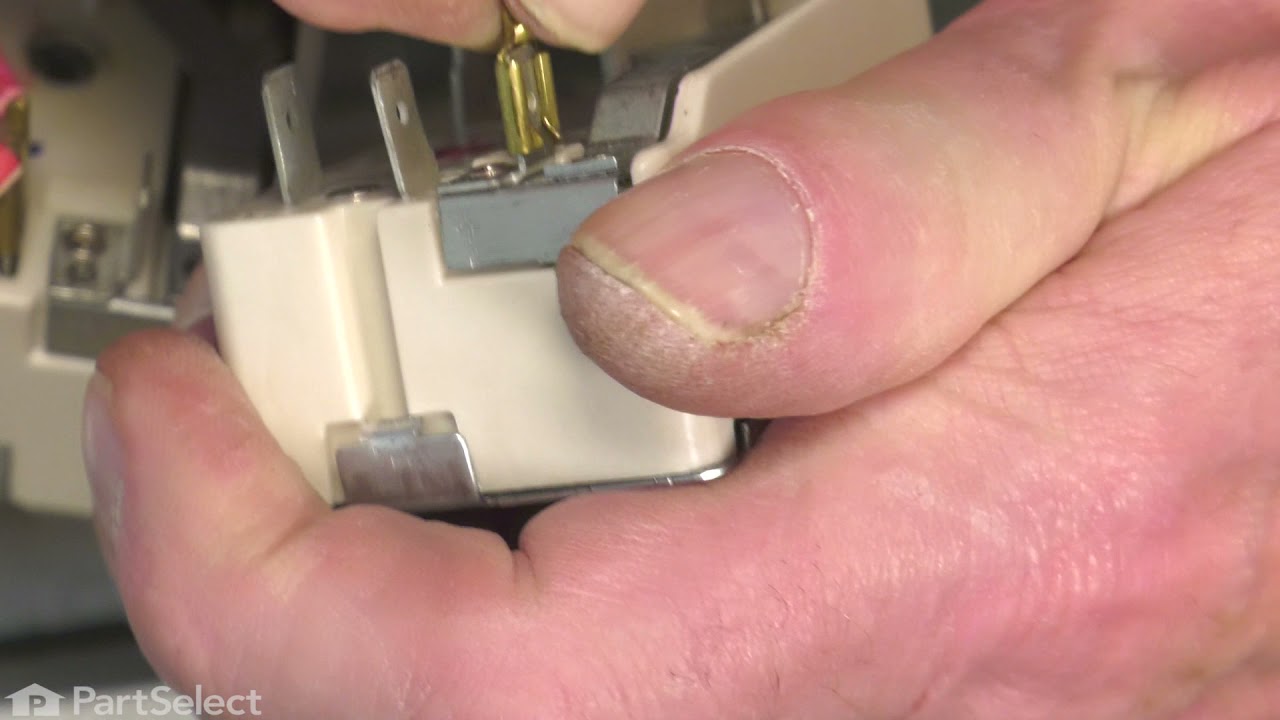

Surface Burner Switch - 240V
PartSelect #: PS2339825
Manufacturer #: WB24T10153
This switch controls the stove top surface burner.
$128.05
Special Order
RECEPTACLE PUSH-IN
PartSelect #: PS752188
Manufacturer #: WB08T10026
This part is the replacement light socket for your oven. The oven light socket provides power to the light, and at the same time holds the light bulb in place.
$15.95
Special Order
Front Drawer Support
PartSelect #: PS249583
Manufacturer #: WB48T10013
Looking to fix your range drawer? You're in the right place. First things first, the GE Front Drawer Support is the key to maintaining stability'and without it, your range drawer might wobble or becom...
$17.70
Special Order
Haliant Element - 12 Inch
PartSelect #: PS2321564
Manufacturer #: WB30T10130
If your GE stove isn’t heating evenly or one of the burners isn’t working, this dual radiant heating element could be the fix. It fits many GE flat-top ranges and has two sizes built into one—12 inche...
$199.05
Special Order
Light Lens
PartSelect #: PS1015754
Manufacturer #: WB25T10042
Looking for a way to brighten up your cooking experience? We have just what you need - the authentic GE light lens replacement. This little hero is crucial to your range as it covers both your surface...
$13.95
Special Order
Window Pack Assembly
PartSelect #: PS773379
Manufacturer #: WB56T10105
The GE Oven Door Window Pack Assembly is a genuine OEM part that fits select GE ranges and ovens. It includes a heat-resistant inner glass panel, frame, and seals, providing insulation and clear visib...
$223.56
Special Order
Questions And Answers for JB655DT2BB
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Common Symptoms of the JB655DT2BB
[Viewing 8 of 8]Element will not heat
Fixed by
these parts
these parts
Show All
Little to no heat when baking
Fixed by
these parts
these parts
Show All
Oven not heating evenly
Fixed by
these parts
these parts
Show All
Oven is too hot
Fixed by
these parts
these parts
Show All
Will Not Start
Fixed by
these parts
these parts
Show All
Door won’t close
Fixed by
these parts
these parts
Show All
Little to no heat when broiling
Fixed by
these parts
these parts
Show All
Door won’t open after self cleaning cycle
Fixed by
these parts
these parts
Show All
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Oven would go in to a F2 Error
Removed six 1/4" hex nuts on rear of oven. Then through front/inside removed a single 1/4" hex nut to actually remove sensor. Unplug sensor connector, remove. Reversed steps, push oven back in place and plugged in. Tested oven function.
Parts Used:
-
Peter from stamford, CT
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver
148 of 226 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
terminal block melted
The existing terminal block on my Ge oven/Range had melted due to a loose wire causing sparking and starting the plastic casing of the terminal block on fire and melting it, Part select made the part easy to find and had it at my house in 2 days. All I had to do was remove six screws to take the back sheet metal cover off of the oven. Unscrew the terminal connections remove two mounting screws that held the terminal on to the oven body. This was a little trickier than it should have been because the melted plastic had reformed making it very hard to access the mounting screws. i then mounted the new piece and plugged the oven in, it took 15 minutes and was very easy. definitely saved me at-least a $100 for the service call i would have made if finding the part wasn't so convenient
Parts Used:
-
jonathan from willow springs, IL
-
Difficulty Level:Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Screw drivers
54 of 75 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
9" Radiant Element did not heat up.
I started by Unscrewing the range top. 2 small screws. I took off the old piece by unclipping the piece . Then I color coded each wire so that I would know exactly where I would place the wires for the new part. 30 min maximum time spent changing the part. Please don't forget to unplug the range before you start.
Parts Used:
-
Andrea from ORLANDO, FL
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
46 of 62 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
