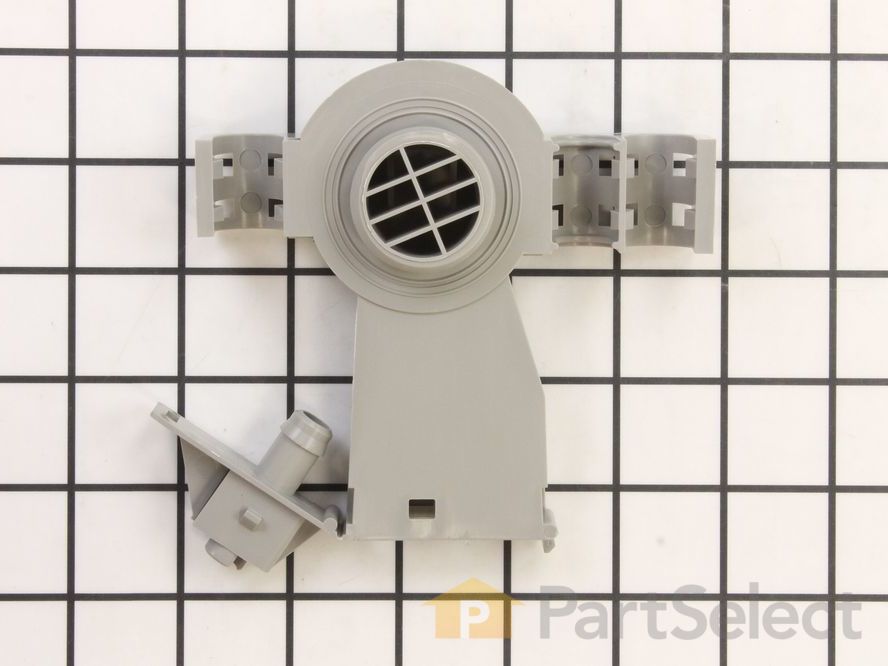

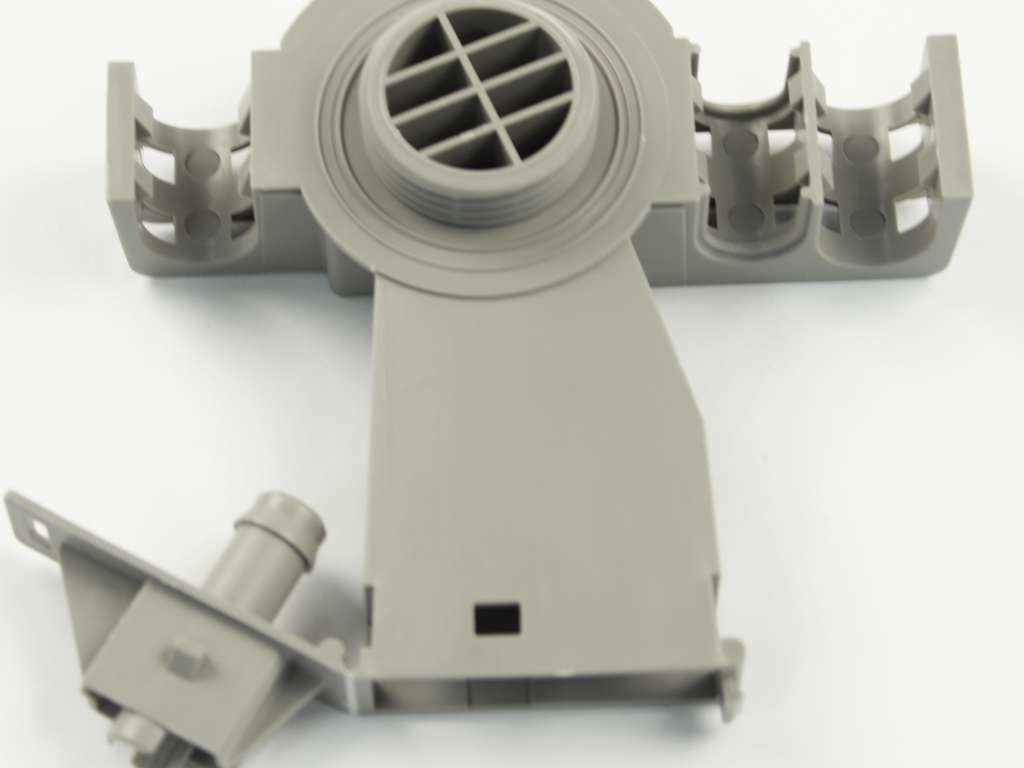

This is connected to the water valve, is located on the side of your tub and allows water to enter your dishwasher.
***Note: This part does not include the inlet gasket - must order separately.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Leaking | Will not fill with water
This part works with the following products:
Dishwasher.
This part works with the following products:
Whirlpool, Kenmore, KitchenAid, Maytag.
Part# WPW10195536 replaces these:
AP6016773, 8531325, W10195536
Customer Reviews
Average Rating:
★★★★★
★★★★★
7 Reviews
4.1
Filter By Rating:
5 Stars
5
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
1
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
John A - March 27, 2021
Verified Purchase
Very easy repair.
The part arrived very quickly and was very easy to replace. All i needed was a pair of pliers.
★★★★★
★★★★★
David K - May 6, 2021
Verified Purchase
Super quick!
As ordered. Perfec!
★★★★★
★★★★★
Amy P - April 28, 2020
Verified Purchase
Easy repair
Unbelievable fast delivery! Super easy to install with the online video!
★★★★★
★★★★★
Antonio W - September 3, 2020
Verified Purchase
Part seemed to fix the problem.wifes happy dishwasher is working
The part came fast , easy installation . Dishwasher is back in operation.
★★★★★
★★★★★
Mike V - June 1, 2020
Verified Purchase
Great part
It fit really well
★★★★★
★★★★★
Dan P - July 11, 2019
Verified Purchase
Easy install
The parts came quickly and were easy to install. However, I thought the prices were very expensive. The "special" hose clamp was 7.00 dollars. It was just a normal hose clamp that I could have purchased here for .75 cents. The black connector plastic hose for 40.00 dollars was ridiculous. But you have us by the short and curries as we needed the part.
★★★★★
★★★★★
Mateusz G - December 28, 2018
Verified Purchase
Badly designed part
Part is badly designed, leaks even after installing new. Had it checked by two other people, both engineers: all agree its flawed part design. Will be replacing the dishwasher. Extreemly disappointed. The only positive part is the quick shipping and handling of the part by partselect.ca
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.5 / 5.0, 2 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Water leak
I watched the instructional videos that showed how to replace the inlet fill hose/water inlet a couple of times. The repair was exactly as shown. No trouble at all.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
25 questions answered by our experts.
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Chuck
January 18, 2018
Dishwasher will not fill with water
For model number KUDE70FVPA2
Hi Chuck,
Thank you for your question. If the dishwasher is not filling with water, there are some parts that you will need to check to see which one is causing the issue. You will need to check the water inlet valve, the float switch, the float assembly and the water inlet. I hope this helps. Thank you and have a great day!
9 people found this helpful.
Was this helpful?
Thank you for voting!
Jimmie
November 21, 2017
My dish washer will start but will not activate the spray arms. I have replaced the fill valve and control board. When i cancel the cycle it will pump the water out.
For model number KDFE104DSS3
Hi Jimmie,
Thank you for your question. It sounds like you have blockage somewhere either in your spray arms themselves, or more likely in your manifold. I would suggest checking these parts to see if they are blocked up. I hope that helps. Good luck with your repair.
6 people found this helpful.
Was this helpful?
Thank you for voting!
Judy
February 8, 2018
Does not appear that water coming in to the dishwasher and tablets not dissolving. Where is the water inlet valve?
For model number wct780saemi
Hi Judy,
Thank you for your question. If your dishwasher is not filling with water, there are some parts that you will need to check to see which one is causing the issue. You will need to check the water inlet valve, the overfill control switch, the hose clamp, the water inlet, the door balance link kit and the drain hose. I hope this helps. Thank you and have a great day!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Marian
August 19, 2019
Water comes inside the dishwasher without using it. Goes pretty high and starts leaking on the right corner. Called a plumber, he checked the drain and said nothing wrong.He mentioned that might be the inlet water valve.
For model number MDB7759AWS1
Hello Marian, Thank you for the question. Yes, this is normally a issue with a defective water valve and it will need to be replaced. Hope this helps!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Forest
January 24, 2020
My dishwasher drains fine. No dirty water is left at the end of a cycle. The next morning there is clean, fresh water in the bottom of the dishwasher - perhaps a couple of pints. Is this because the fill valve is getting weak or the shut off piston is getting stuck slightly open? Will anything else cause water to enter the dishwasher when it is not in a cycle?
For model number 66513112K701
Hello Forest, Thank you for the question. You are correct. In most cases the valve is stuck open and allowing water to leak into the tub when not in use. We suggest having the valve replaced. We hope this helps.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Bud
December 16, 2017
The inlet on the side of the dishwasher is leaking out of the square hole every things else looks good
For model number KUDI01ILWH6
Hello Bud, Thank you for your inquiry. We would recommend the following parts to fix your issue: the door seal, tub seal, water inlet valve, hoses, clamps, and the air inlet. Good luck with your repair!
2 people found this helpful.
Was this helpful?
Thank you for voting!
James
November 2, 2023
I have a whirlpool dishwasher that runs but will not fill with water? I replaced the water inlet valve and it still will not fill.
For model number WDT750SAHV0
Hello James, thank you for the question. Based on our understanding of the issue, we would suggest you checking the float switch, part number PS11750031, to fix the issue. We hope this solves your problem!
I changed the inlet valve and the float assembly it worked a few times then stopped when i add water to the dishwasher it works fine
For model number KUDS01FLSS3
Hi Mark,
Thank you for your question. If the dishwasher is not filling with water on it's own, then you will also need to check the circulation pump and motor, the float switch, the float assembly, the impeller and seal
and the electronic control board. I hope this helps. Thank you and have a great day!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Janice
February 23, 2018
Brand new dishwasher will not fill with water
For model number kdte104ess3
Hello Janice, thank you for your question. If the unit is not filling with water I would recommend checking the water supply line from the house to the appliance, the VALVE-INLT
Part Number: W10872255, the Overfill Control Switch Part Number: WPW10195039 as well as the Water Inlet Part Number: WPW10195536. The water comes from the house, to the valve, then the valve allows water to the water inlet and into the unit. These parts all work together to fill the appliance. I hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Judd Larson
January 30, 2019
Dishwasher will not stop filling with hot water. I have shut off the hot water to the dishwasher. It has been very cold here (-30f) so my thought is that water inlet was frozen and it no longer managing the flow of water to the dishwasher. Does that make sense or could it be another issue? Thanks.
For model number IUD9500WX4
Hello Judd, Thank you for contacting us. I suggest checking the water inlet valve with a multimeter. This is part number PS11738107. If you are unfamiliar with how a multimeter functions, we do provide assistance on our website. Good luck with your repair!
