Part Location Diagram of 5220FR2075L LG Water Inlet Valve - Cold
See part NI in the diagram
Replacing your LG Washer Water Inlet Valve - Cold
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.ca

Water Inlet Valve - Cold

 Fits your WM2077CW!
★★★★★
★★★★★
9 Reviews
$135.21
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

 Fits your WM2077CW!
PartSelect Number PS11728995
Manufacturer Part Number 5220FR2075L
Manufactured by LG
Product Description

Water Inlet Valve - Cold Specifications

This valve is used for cold water, bleach dispenser and prewash cycles. It has a standard hose fitting inlet with 2 outlets facing 45 degrees to the right and one outlet facing 45 degrees to the left.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

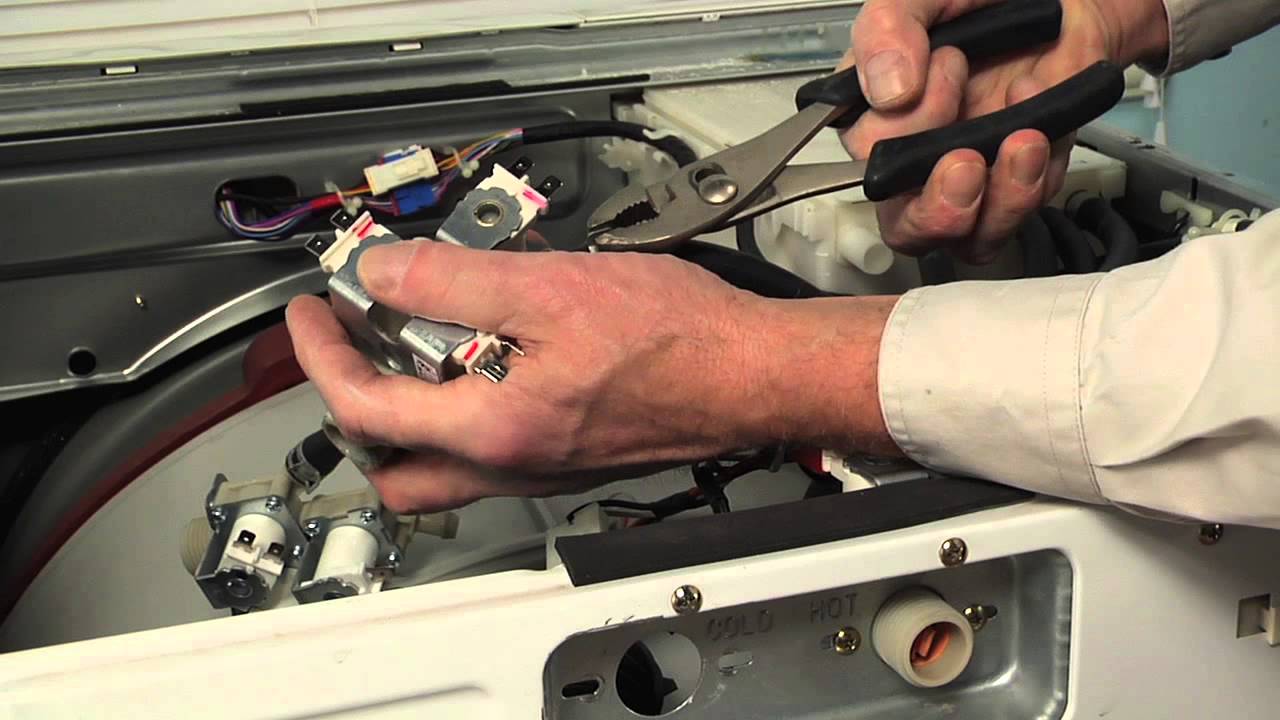

Replacing your LG Washer Water Inlet Valve - Cold

Replacing your LG Washer Water Inlet Valve - Cold
Troubleshooting
This part fixes the following symptoms:
Leaking | Water Filling Issues
This part works with the following products:
Washer, Washer Dryer Combo.
This part works with the following products:
LG, Kenmore.
Part# 5220FR2075L replaces these:
AP5986564, 5221ER1003A, AGM73269503
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
9 Reviews
5.0
Filter By Rating:
  • 5 Stars
    9
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Customer Repair Stories
 Average Repair Rating: 4.2 / 5.0, 25 reviews. What's this?
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Inlet valve leak
Followed directions on the video and went like a charm. Very impressed with service and video
Other Parts Used:
  • John from Northport, NY
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
34 of 37 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Inlet valve was leaking
1 - Remove 3 electrical connections
2 - Slide spring clamp back an inch or so on 1 hose. Pull hose off of old unit. Attach the same hose to new unit and reclamp.
3 - Repeat with other 2 hoses
4 - Reconnect electrical connections
Other Parts Used:
  • Steven from MOBILE, AL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Screw drivers
11 of 11 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water was filling the tub when washer was not in use.
I followed the video and my repair went just like the expert showed on the video. The hardest part was pulling the washer away from the wall and getting enough elbow room to be able to work on the washer. I will definitely come back to this site for my next appliance repair.
Other Parts Used:
Water Inlet Valve - Hot
  • Stephen from BONITA SPGS, FL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
9 of 9 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Replace leaky water valve
Very simple. Watched video.
Pulled the washer out to get behind it.
Turned off water supply, unplugged it.
Unscrewed the screwesholding the top in place, slid top back, lifted it off.
Used pliers to open the clamps holding the pipes to the valve - one at a time. And fitted the pipes to new valve, one at a time.
SOME WATER REMAINS IN THESE PIPES, SO PUT A TOWEL UNDERNEATH TO CATCH IT.
Removed the electrical connectors one at a time and fitted them to the new valve one at a time.
Did same to the hot valve - not leaking but decided to replace it before it did leak.
Reattached water supply hoses and electric plug.
Tested the washer cycle to make sure no leaks.
Put top back on and pushed washer back to wall.
Apart from the testing, the whole job took 25 minutes.
The parts arrived on Day 2 after the order.
VERY PLEASED WITH EVERYTHING!
Other Parts Used:
Water Inlet Valve - Hot
  • JOHN from LOVELAND, CO
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Screw drivers, Wrench (Adjustable)
7 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water was leaking into washing machine after the washer was shut off
Removed the cover from the washing machine, the two valves(cold & hot) are located in the read top of the machine, removed the hoses to the valves, removed the nut that holds on the valve to the washer and placed new valve into washer and placed the nut back onto new valve, placed the hoses back onto the new valve.
Other Parts Used:
Water Inlet Valve Filter Screens Water Inlet Valve - Hot
  • Keith from ROCKAWAY, NJ
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers, Socket set, Wrench (Adjustable)
6 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Bleach dispenser not emptying.
First unplug the machine. Turn the water off to the hoses. Remove the hoses from the machine to make it easier. Remove the screws from the back of the top cover. Pry the front sides with a screwdriver and lift. Standing behind the machine on the left side you’ll see the three solenoids or inlet assembly. Remove the two screws so as to take the inlet assembly out. There are hoses attached to the assembly.
Other Parts Used:
  • Millie from MANORVILLE, NY
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers, Wrench (Adjustable)
5 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Cold water inlet was leaking. The back Shock Absorber was a little rusty from the water.
The repairs went great thanks to the videos and Steve.
Other Parts Used:
Shock Absorber Kit
  • Ignatius from PARKERSBURG, WV
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
4 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water was collecting in the machine after it finished its cycle.
Turned off hot and cold water supply. Pulled out machine and disconnected hoses, unplugged power.

Unscrewed 4 screws at back top of machine (holding plastic bracket to cover). Pulled out trays from front where detergent is poured, and removed small screws under trays.

Slid cover back and up. This was the only tricky part. There are pegs that must line up with large holes in cover before you can easily lift cover up. Helps to look from underneath and find pegs on each side.

Using pliers, fully open clamps holding hoses to the inlet valves, and carefully pull off hoses while keeping clamps open with pliers… making sure to keep track of which hose goes to each motor. Take a picture of electrical connectors noting color and sequence of connectors on each inlet valve motor. Pull all connectors off.

Unscrew screws holding each inlet valve to machine. Put new inlet valves in place of old, and screw in place. Reconnect hoses (using pliers to hold open clamps, then slide clamps over tubing and inlet valve connector). Reconnect electrical connectors carefulljng lining up colors of wires and sequence using picture taken in previous step.

Replace cover. Screw all screws back to secure cover. Replace trays.
Other Parts Used:
Water Inlet Valve - Hot
  • Jeffery from NORTHFIELD, IL
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leaking from 19 yr old cold water valve.
Figured out how to take off top of washer, look inside for problem, ordered new part, watched video how to replace part. All on line. $65.00 later and my 19 yr old washer is still working awesome.
Other Parts Used:
  • Denise from LAS VEGAS, NV
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Noticed water underneath the washer. After taking the top of the washer off I noticed that on top of the water inlet valve water was dripping from it.
I actually did the repair exactly as the video showed. If I would have had the part at the time of discovering the problem it would have been about a 45 minute repair from start to finish. Worst part of the whole fix was moving the heavy washer.
Other Parts Used:
  • Kenneth from DELTA, OH
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Screw drivers
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
  • 3
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

24 questions answered by our experts.
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Derek
February 4, 2018
Will this fit the wm2650hva model?
For model number wm2650hva
PartSelect logo
Hello Derek, Thank you for contacting us. I have researched the model you have provided and have found the part you’re looking for is PartSelect Number: PS11728995 for the Cold water and PartSelect Number: PS3527427 for the Hot. Good luck with the repair!

19 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Jenna
April 22, 2018
I'm trying to troubleshoot my problem. After running a load of wash, water clears out, no problems. Then if i don't use the washer for a few days, about 3 cups of water fills the washing machine. It's always to aproximatly the same level and it always takes a few days of nonoperation to fill. I'm trying to figure out what to fix.
For model number WM2233HS
PartSelect logo
Hello Jenna, thank you for your question. This issue could be the water valve itself, that is leaking into the washer after the unit is done its cycles. Its possible the valve is stuck slightly open and is allowing water to come into the tub. Or, the problem might be that water is coming BACK into the unit after its been pumped out. I would recommend checking the drain hoses, and recommendations for how the unit is set up to be sure that the hoses are not kinked, or have moved. Sometimes, if the hoses are not installed properly, water can't get all the way out of the hoses then some comes back in. If the appliance was installed properly, and the hoses are clear, not kinked and set up properly, the issue is probably with the water valve for the appliance. I hope this helps!

8 people found this helpful.

Was this helpful?
Thank you for voting!
Christina
May 16, 2019
The washer continues to fill what is the part number or is this it for the water inlet valve
For model number RTW4516FW2
PartSelect logo
Hello Christina, thank you for your question. The water valve for this unit is actually PartSelect Number: PS12349269. Please enter the part number into the site for current price and availability. Good luck with your repair!

7 people found this helpful.

Was this helpful?
Thank you for voting!
David
May 1, 2018
Washer leaking in the front. What do you think is wrong?
For model number WM2016CW/01
PartSelect logo
Hello David, thank you for your question. The leaking could be coming from one of the water valve, the drain pump, or a hose that has come loose or has cracked or broken. This front load washer also has a large rubber door gasket that can sometimes get ripped and will cause leaking at the front of the unit. I would recommend removing the back panel, and top panel to see if you can locate the leak, then we can provide more information on the parts you would need to fix it! I hope this helps!

6 people found this helpful.

Was this helpful?
Thank you for voting!
Ray
November 23, 2019
I just have one solenoid leaking. Can i just replace the solenoid instead of the whole valve?
For model number WM2010CW
PartSelect logo
Hello Ray and thanks for writing. Yes, you can if you can find the correct solenoid. We do not carry this part on its own it comes as part of the water inlet valve. We hope this helps. Please contact us anytime.

4 people found this helpful.

Was this helpful?
Thank you for voting!
David
February 25, 2018
I got this part but i made a simple but critical mistake. I disconnected the hoses before i marked them. I see that they attache to main, prewash and bleach but i dont know the order. Can you please tell me which hose goes to which calve? I cant believe i did that. Please help.
For model number 5221ER1003A
PartSelect logo
Hi David, Thank you for your question. There is a video listed with the part on our website that you may reference on how to install the lines. I hope this helps. Thank you and have a great day!

3 people found this helpful.

Was this helpful?
Thank you for voting!
KEVIN
November 21, 2018
Water is leaking out the top of the inlet valves. If i replace the part is there something, like high water pressure, that i should be concerned about damaging the replacement as well?Thanks
For model number Kenmore 796
PartSelect logo
Hi Kevin, Thank you for your question. Before installing the new water inlet valve, you will need to check the water pressure coming from the where it connects to the water inlet valve to make sure the correct amount is coming out. I hope this helps. Thank you and have a great day!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Jacinta
July 11, 2019
Corrected model# (computer dyslexia!). Should I replace pump and inlet valve if leaking through door bottom? Is one more likely the culprit? Would appreciate if you located correct parts. Thnx.
For model number WM2140C
PartSelect logo
Hello Jacinta, Thank you for the question. If there is a leak at the door I suggest checking the Door Gasket, PartSelect Number PS3524977 for damage or wear. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Debbie
July 29, 2019
Washer does not fill with hot or cold water do i need to replace both valves?
For model number WM2240CW
PartSelect logo
Hello Debbie, thank you for your question. Yes, if neither hot or cold work we would recommend replacing both valves. Good luck with your repair!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Melissa
January 21, 2018
The part we took off had two valves on it the one pictured shows 3 will this part still work with my machine?
For model number WM3570HVA
PartSelect logo
Hi Melissa, Thank you for your question. Yes, this water inlet valve will work on your appliance. I hope this helps. Thank you and have a great day!

2 people found this helpful.

Was this helpful?
Thank you for voting!
  • 1
  • 2
  • 3
Related Parts
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11728995
Manufacturer Part Number: 5220FR2075L
Brand
Model Number
Description
LG
40311
Washer - Washer
LG
40318
Washer - Washer
LG
40518
Washer - Washer
LG
41072
Washer - LG Washing Machine Model 41072 Parts
LG
41073
Washer - LG Washing Machine Model 41073 Parts
LG
41162
Washer - LG Washing Machine Model 41162 Parts
LG
41262
Washer - LG Washing Machine Model 41262 Parts
LG
41272
Washer - Washer
LG
41302
Washer - LG Washing Machine Model 41302 Parts
LG
41303
Washer - LG Washing Machine Model 41303 Parts
LG
41372
Washer Dryer Combo - Washer-Dryer
LG
41373
Washer
LG
41382
Washer - LG Washing Machine Model 41382 Parts
LG
41383
Washer - LG Washing Machine Model 41383 Parts
LG
41392
Washer - LG Washing Machine Model 41392 Parts
LG
41393
Washer - LG Washing Machine Model 41393 Parts
LG
41482
Washer - Washer
LG
41483
Washer - Washer
LG
41572
Washer - Washer
LG
41583
Washer - Washer
LG
41962
Washer - LG Washing Machine Model 41962 Parts
LG
41963
Washer - LG Washing Machine Model 41963 Parts
LG
41982
Washer - LG Washing Machine Model 41982 Parts
LG
41983
Washer - LG Washing Machine Model 41983 Parts
Kenmore
79640021900
Washer
Kenmore
79640272800
Washer
Kenmore
79640272900
Washer
Kenmore
79640311900
Washer
Kenmore
79640318900
Washer
Kenmore
79640512900
Washer
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

Contact Customer Service
