Part Location Diagram of 4413ER1003B LG Rotor Assembly
See part K360 in the diagram
Replacing your LG Washer Rotor Assembly
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Monday to Saturday
8am - 9pm EST

customerservice@partselect.ca

Rotor Assembly

 Fits your WM2101HW!
★★★★★
★★★★★
1 Review
$233.42
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

 Fits your WM2101HW!
PartSelect Number PS3522944
Manufacturer Part Number 4413ER1003B
Manufactured by LG
Product Description

Rotor Assembly Specifications

This rotor assembly is a manufacturer-approved replacement part for your washing machine. The rotor is an important part to rotate the tub during the wash cycle. It can need replacing if the magnets or splines become damaged. Unplug the washer before beginning this repair. To complete this repair, you will need a Phillips screwdriver, a 17mm socket wrench, and thread-locking fluid.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

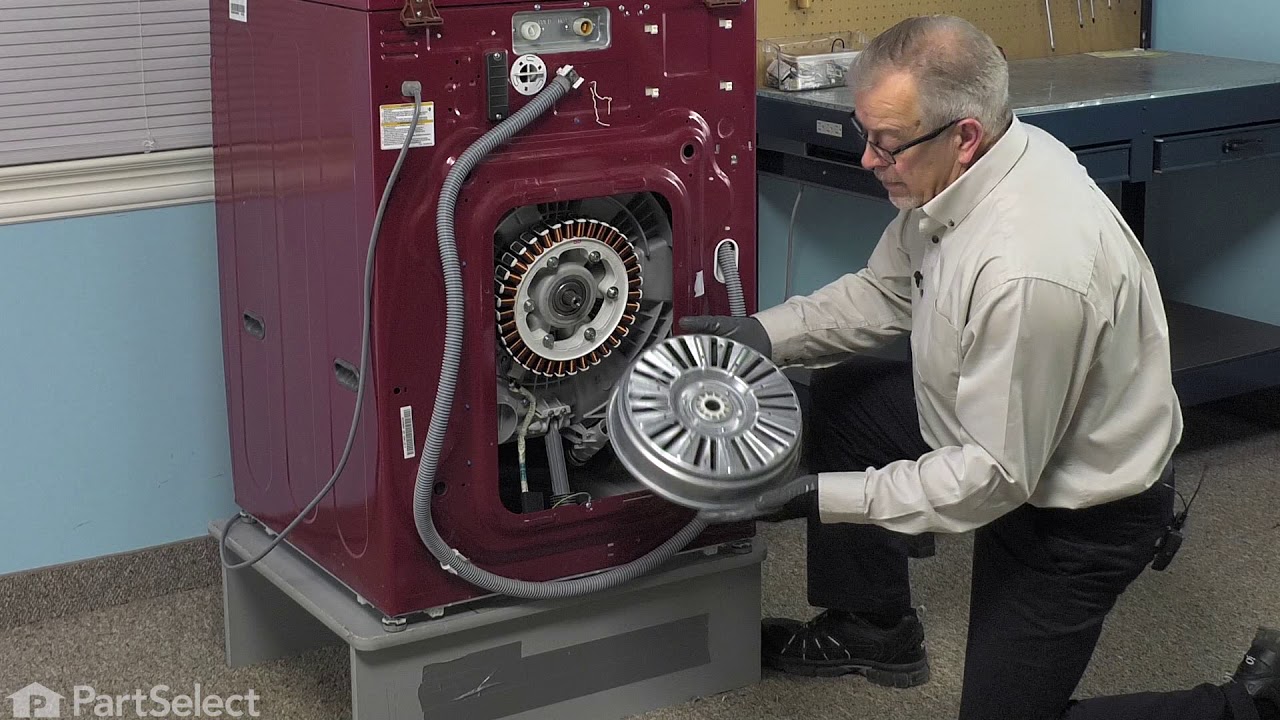

Replacing your LG Washer Rotor Assembly

Replacing your LG Washer Rotor Assembly
Troubleshooting
This part fixes the following symptoms:
Will not agitate | Spins slowly
This part works with the following products:
Washer.
This part works with the following products:
LG, Kenmore.
Part# 4413ER1003B replaces these:
5215672, 1519486, 4413ER1003B
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
1 Review
5.0
Filter By Rating:
  • 5 Stars
    1
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

8 questions answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Ricky
January 21, 2018
Washer makes a grinding noise when you start washer and the clothes get wet and will not agitate. It works fine with nothing in the machine it fills and drains and spins empty but when clothes get wet it makes this grinding noise and won't agitate
For model number WM2301HR
PartSelect logo
Hello Ricky, Thank you for your inquiry. I would advise checking the rotor, and stator assembly. The rotor interacts with the stator to create a strong electromagnetic field, which rotates the tub in either direction. If either part is damaged, the drum will not agitate and could create a grinding noise. Hope this helps!

12 people found this helpful.

Was this helpful?
Thank you for voting!
Adam
November 13, 2018
The rotor assembly is in good condition but the gears on the plastic middle piece are worn. Are you able to buy the plastic inner piece separate from the rest of the rotor assembly?
For model number WM2487HWMA
PartSelect logo
Hello Adam, Thank you for the question. Very sorry but the gears and the the plastic inner piece is only sold as part of the Rotor Assembly. Hope this helps, good luck with this repair!

5 people found this helpful.

Was this helpful?
Thank you for voting!
CATALINA
April 24, 2019
My washer is working fine, however at the end of the cycle when it is about to finish spinning the machine makes a very loud noise that it didn't use to make. Any ideas as to what could it be?
For model number WM2487HWM
PartSelect logo
Hi Catalina, Thank you for your question. If the washer is noisy at the end of the cycle, there are some parts that you will need to check to see which one is causing the issue. You will need to check the ball bearings, the rear tub gasket, the gasket, the drain pump, the spider, the circulation pump motor, the bolt assembly, the water inlet valve and the shock absorber. I hope this helps. Thank you and have a great day!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Paul
February 28, 2020
I keep getting an le error code. My child put a really heavy load of clothes in the washer. Resetting it did not work. I’m sure the motor is locked because of the heavy load. When i start a cycle the machine makes a groaning noise before the le code comes up. Water will fill and it will drain but that’s it. What part do u recommend i purchase?
For model number WT5070CW
PartSelect logo
Good Day Paul. Thank you for your question in regards to your unit (Model Number WT5070CW). Based on our research you may need to replace the Rotor Position Sensor Assembly (PartSelect Number PS3529186) in order to solve the issue you are having. You can order this part either online at our website www.PartSelect.com or by calling us by phone at 888-260-4310. Best Regards.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Wilma
June 26, 2021
What’s wrong with the machine when it stops spinning make a noise won’t spin
For model number WM2688HNM
PartSelect logo
Hello Wilma, Thank you for the question. The most common issue when the drum will not spin but is still draining would be the Rotor Assembly. We hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Jessica
October 1, 2021
I keep getting an LE error code. i checked and the load is not an overized load. i followed the procedure for resetting the code, let the washer sit for an hour. i am able to start a new cycle, but about 2 minutes in it will stop and give the Code again. What part do u recommend i purchase? thanks!
For model number WM2101HW
PartSelect logo
Hello Jessica, Thank you for your inquiry. The LE error code can indicate the drive system has locked up. We would recommend checking the stator and rotor assembly as they are what drives the tub for this model. Good luck with your repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
George
August 23, 2017
The drum was making noise while spinning now does not spin at all its an LG steam washer it does turn freely
PartSelect logo
Hi George, Thank you for your inquiry. If the washer was emitting a noise from the drum and it is not spinning now there are a few parts you may have to check. You may have to check the agitator, the agitator directional cogs, the agitator coupler and cap and bolt, the direct drive motor coupling, the drive belt, the transmission, the drive motor and the transmission. I hope this helps with the repair. Thank you and have a great day!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Jerrimy
September 11, 2019
The rotor assembly looks fine. Could it be the stator going bad?
For model number WM2101HW
PartSelect logo
Good Day Jerrimy. Thank you for your question in regards to your unit (Model Number WM2101HW). What exactly is the issue you are having with your unit? Once we know the issue we can research into finding the right compatible parts. Best Regards.

1 person found this helpful.

Was this helpful?
Thank you for voting!
  • 1
Related Parts
Model Cross Reference
This part works with the following models:
PartSelect Number: PS3522944
Manufacturer Part Number: 4413ER1003B
Brand
Model Number
Description
LG
40272
Washer - LG Washing Machine Model 40272 Parts
LG
40311
Washer - Washer
LG
40318
Washer - LG Washing Machine Model 40318 Parts
LG
40441
Washer - LG Washing Machine Model 40441 Parts
LG
40448
Washer - LG Washing Machine Model 40448 Parts
LG
40512
Washer - LG Washing Machine Model 40512 Parts
LG
40518
Washer - LG Washing Machine Model 40518 Parts
LG
41022
Washer - LG Washing Machine Model 41022 Parts
LG
41028
Washer - LG Washing Machine Model 41028 Parts
LG
41029
Washer - LG Washing Machine Model 41029 Parts
LG
42192
Washer - LG Washing Machine Model 42192 Parts
LG
42198
Washer - LG Washing Machine Model 42198 Parts
LG
42199
Washer - LG Washing Machine Model 42199 Parts
LG
498610
Washer Dryer Combo - Washer-Dryer
Kenmore
79640272800
Washer
Kenmore
79640272900
Washer
Kenmore
79640311900
Washer
Kenmore
79640318900
Washer
Kenmore
79640441900
Washer
Kenmore
79640448900
Washer
Kenmore
79640512900
Washer
Kenmore
79640518900
Washer
Kenmore
79641022900
Washer - Kenmore Washing Machine
Kenmore
79641028900
Washer
Kenmore
79641029900
Washer
Kenmore
79642192900
Washer
Kenmore
79642198900
Washer
Kenmore
79642199900
Washer
LG
F1065FD
Washer - LG Washing Machine Model F1065FD Parts
LG
F1069FD
Washer - LG Washing Machine Model F1069FD Parts
