Models > MHWE200XW00

MHWE200XW00 Maytag Washer - Overview

Sections of the MHWE200XW00

[Viewing 7 of 7]
Keep searches simple, eg. "belt" or "pump".
Front Load Washer Bellow Door Boot Seal - Gray – Part Number: WPW10381562
Front Load Washer Bellow Door Boot Seal - Gray
★★★★★
★★★★★
(95)
PartSelect #: PS11753988
Manufacturer #: WPW10381562
$324.65
  In Stock
Washer Drain Pump – Part Number: WPW10730972
Washer Drain Pump
★★★★★
★★★★★
(76)
PartSelect #: PS11757304
Manufacturer #: WPW10730972
$191.92
  In Stock
Touch-Up Paint - White – Part Number: 72017
Touch-Up Paint - White
★★★★★
★★★★★
(16)
PartSelect #: PS385132
Manufacturer #: 72017
This 18 ml bottle of white appliance touch-up paint is used to cover scratches or marks on your appliance. The white touch-up paint can be used on refrigerators, microwaves, ranges, clothes dryers, an...
$10.20
  In Stock
Door Strike/Hook – Part Number: WP8540221
Door Strike/Hook
★★★★★
★★★★★
(9)
PartSelect #: PS11746261
Manufacturer #: WP8540221
Used to help make the door stay closed. Sold individually.
$15.53
  In Stock
Shock Absorber – Part Number: W10822553
Shock Absorber
★★★★★
★★★★★
(6)
PartSelect #: PS11723173
Manufacturer #: W10822553
Sold individually. These shock absorbers keep the washer from vigorous shaking during its cycles. This shock absorber is for washers. Shock absorber absorbs the vibrations and movements of the oute...
$72.91
  In Stock
Stacking Kit – Part Number: 8572546
Stacking Kit
★★★★★
★★★★★
(6)
PartSelect #: PS990537
Manufacturer #: 8572546
This kit allows you to stack your washer and dryer to maximize your laundry space.
$61.44
  In Stock
HOSE – Part Number: W11366249
HOSE
★★★★★
★★★★★
(23)
PartSelect #: PS12723931
Manufacturer #: W11366249
This is a replacement tub-to-pump hose for your washer. This hose runs from the bottom of the tub to the water pump, and is used to transport water. The hose can develop a hole, and when this happens ...
$43.62
  In Stock
Washer Dispenser Hose – Part Number: W11366227
Washer Dispenser Hose
★★★★★
★★★★★
(16)
PartSelect #: PS12723930
Manufacturer #: W11366227
This dispenser hose is for washers and carries the contents of the dispenser drawer to the washer tub.
$36.55
  In Stock
Dual Cold Water Valve – Part Number: WPW10212596
Dual Cold Water Valve
★★★★★
★★★★★
(22)
PartSelect #: PS11750469
Manufacturer #: WPW10212596
Water inlet valve controls the water flow into the washer. Fits some washers in the following series: Kenmore 110; Whirlpool CHW, WFW and YWFW; Maytag CHW, MHN, MHP, MHWE, MHWZ and YMHWE; Amana NFW...
$151.54
  In Stock
Door Lock Latch – Part Number: WPW10253483
Door Lock Latch
★★★★★
★★★★★
(9)
PartSelect #: PS11751211
Manufacturer #: WPW10253483
This part ensures that your door stays locked while the machine is running.
$187.19
  In Stock
Bellow To Tub Clamp – Part Number: WP8540108
Bellow To Tub Clamp
★★★★★
★★★★★
(2)
PartSelect #: PS11746259
Manufacturer #: WP8540108
This is the replacement bellow clamp for your washer. It is approximately 18 inches in diameter and is sold individually. The bellow clamp goes around the bellow in your washer and holds it in place o...
$36.37
  In Stock
Temperature Sensor – Part Number: WPW10467289
Temperature Sensor
★★★★★
★★★★★
(5)
PartSelect #: PS11755214
Manufacturer #: WPW10467289
This part regulates the temperature of the water in the tub. The sensor is located in the heating element.
$47.60
  In Stock

Questions And Answers for MHWE200XW00

Ask our experts a question about this model and we'll get back to you as soon as possible!

5 questions answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jerry
February 3, 2020
Leaking in front of washer
For model number MHWE200XW00
PartSelect logo
Hello and thank you for writing. It certainly sounds like it could be a damaged bellow boot seal PS11753988 you should check the part(s) for signs of damage and replace the part(s) as needed. It is recommended to change the clamp PS11746259 for the seal at the same time We hope this helps. Please contact us anytime if you require further assistance.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Derek
February 23, 2020
Wont fill with water and begin wash cycle also door locks as normal when u start cycle but will not unlock
For model number MHWE200XW00
PartSelect logo
Hello, Thank you for your question. You will want to check into the door lock then. If it is not functioning normally you will need to replace it. We hope this helps, good luck with this repair.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Magnus
August 15, 2023
Washer machine fills with water when turned off overnight. Other sources say needs new water valve but i cannot seem to find that part on this site.
For model number MHWE200XW00
PartSelect logo
Hello Magnus, thank you for the question. The compatible water inlet valve for your model is PS11750469. We hope this information helps!

Was this helpful?
Thank you for voting!
Related Parts:
Asma
December 6, 2023
Hi, I am looking for door seal for this model. The seal the goes on the cell of the washing machine and has a rubber ring. Gasket?
For model number MHWE200XW00
PartSelect logo
Hi Asma, thank you for your inquiry. The seal that you are looking for is door boot, part number PS11753988. We hope this helps.

Was this helpful?
Thank you for voting!
Related Parts:
Brian
January 6, 2024
The error code F1 E1 is displayed when I press power button
For model number MHWE200XW00
PartSelect logo
Hello Brian, thank you for the question. The F1 E1 alert indicates there is an issue with the appliance control unit or associated wiring. Unplug the washer, wait two minutes, then plug back in. If the issue persists, you may need to check the wiring connections between the main control board and the user interface control board. Make sure the connections are secure and free from any damage. If the wiring connections are fine, we would recommend checking the control board, part number PS11755965. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Related Parts:
  • 1

Common Symptoms of the MHWE200XW00

[Viewing 14 of 14]
Leaking
Fixed by
these parts
Fixing Fixing Fixing
Show All
Will not drain
Fixed by
these parts
Fixing Fixing Fixing
Show All
Lid or door won’t close
Fixed by
these parts
Fixing Fixing
Show All
Will Not Start
Fixed by
these parts
Fixing Fixing Fixing
Show All
Marks left on clothes
Fixed by
these parts
Fixing
Show All
Burning smell
Fixed by
these parts
Fixing Fixing
Show All
No hot or cold water
Fixed by
these parts
Fixing Fixing
Show All
Engine runs but does not pump water
Fixed by
these parts
Fixing
Show All
Draining Issues
Fixed by
these parts
Fixing
Show All
Water Filling Issues
Fixed by
these parts
Fixing
Show All
Door won’t close
Fixed by
these parts
Fixing
Show All
Locking Issues
Fixed by
these parts
Fixing
Show All
Not draining
Fixed by
these parts
Fixing
Show All
Shaking and Moving
Fixed by
these parts
Fixing
Show All
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
F 21 error
Removed the front panel unplugged
The washer drained water out, lift the washer up to un screw the drain pump. Then unhooked the hoses from pump put the other pump in.
Parts Used:
Washer Drain Pump
  • Andrew from St.Louis, MO
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers, Socket set
369 of 413 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!

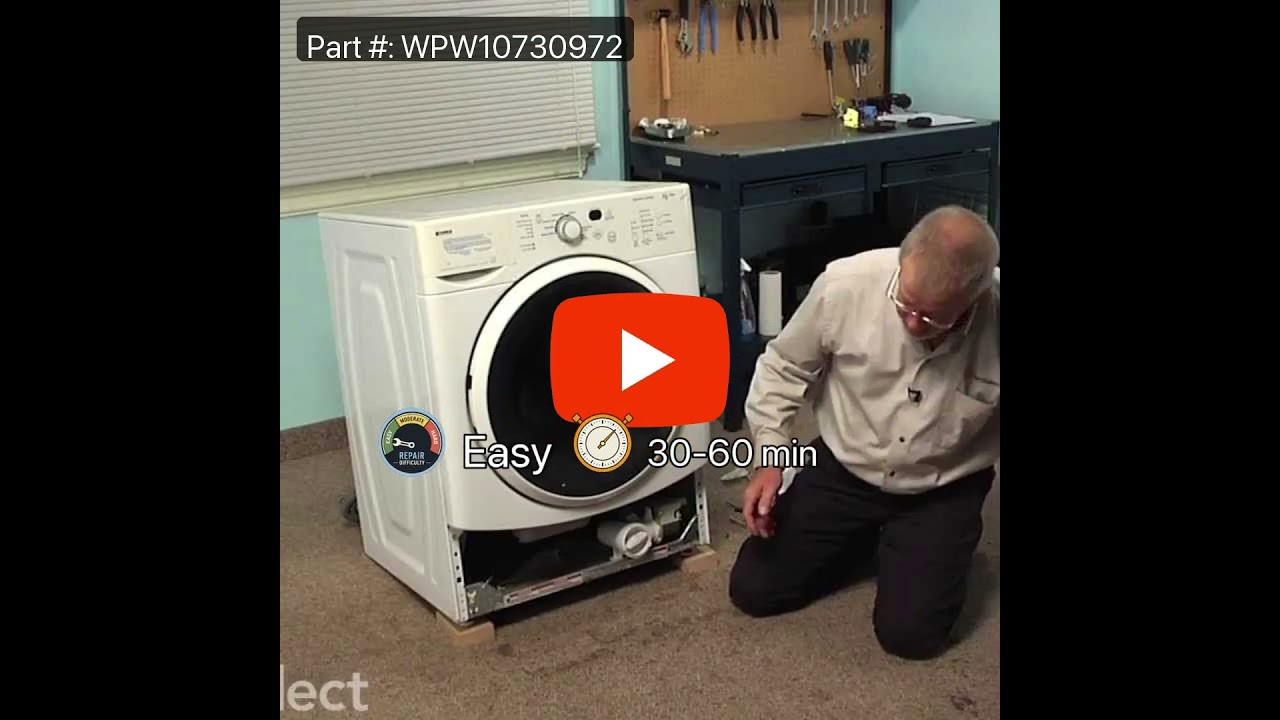

water pump failed
Pump started making noises like ball bearings grinding. took the lower front cover off pulled the strainer out of the pump housing and found $2.55 in nickles dimes and quarters. Some 223 bullets and about 20 bobby pins. Together they had destroyed the impeller, so ordering a new one and installing it did the trick. Easy installation about 15mins.
Parts Used:
Washer Drain Pump
  • Kurt from Caliente, NV
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Pliers
93 of 103 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door latch module was defective
This model is a front-loading washer. The spring loaded retainer for the front of the boot must be removed, then the boot can moved to the side exposing the module. Remove the two screws holding the model, pull the model out, remove the three electrical plugs, then reverse this procedure to install new module.
Parts Used:
Door Lock Latch
  • Carlton from Greer, SC
  • Difficulty Level:
    Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
95 of 113 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
