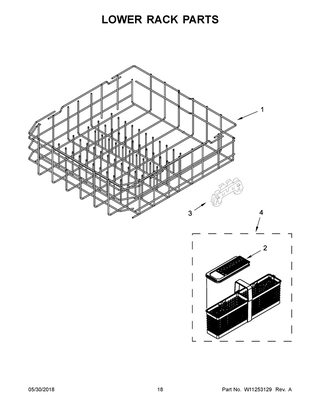

This OEM gray Dishwasher Lower Dishrack Wheel Assembly is a plastic kit that allows the rack to slide in and out of the dishwasher easily. If it breaks or becomes damaged. sliding will feel difficult....
$42.60
In Stock
Order within the next 3 hrs and your part ships today!
This OEM Dishwasher Upper Rack Adjuster is a grayish-black, plastic part which will require a screwdriver to install. It fits onto the dishwasher rack and connects it to the track allowing it to slid...
$41.29
In Stock
Order within the next 3 hrs and your part ships today!
Sold individually. This part secures the upper side of the dishwasher to the underside of the counter or cabinet to prevent the dishwasher from moving, shaking, or tilting forward.
$18.59
In Stock
Order within the next 3 hrs and your part ships today!
This drain pump is used in dishwashers to remove water from the dishwasher tub. If the impeller in the dishwasher is damaged or the motor has been shorted out and will not drain, it is possible the bo...
$95.58
In Stock
Order within the next 3 hrs and your part ships today!
Prevent leaks and maintain optimal cleaning performance with this durable dishwasher door seal. It creates a secure barrier to keep water contained during wash cycles, ensuring reliable operation. Rep...
$75.04
In Stock
Order within the next 3 hrs and your part ships today!
Also known as rack adjuster. Sold individually.
This is an original part from KitchenAid, Kenmore, Whirlpool, Jenn-Air, and Maytag for use with Dishwashers. The dishrack adjuster arm positioner clip...
$58.30
In Stock
Order within the next 3 hrs and your part ships today!
This 18 ml bottle of white appliance touch-up paint is used to cover scratches or marks on your appliance. The white touch-up paint can be used on refrigerators, microwaves, ranges, clothes dryers, an...
$15.95
In Stock
Order within the next 3 hrs and your part ships today!
This dishwasher heating element is a genuine replacement component designed for select models from Whirlpool, KitchenAid, Maytag, Kenmore, and affiliated brands. Constructed from a durable nickel-chro...
$102.25
In Stock
Order within the next 3 hrs and your part ships today!
This dishrack adjuster allows you to change the height of the top rack in your dishwasher, making room for larger items below or optimizing space for smaller loads. If the clip becomes damaged or worn...
$58.41
In Stock
Order within the next 3 hrs and your part ships today!
Questions And Answers for MDB8989SHZ0
Ask our experts a question about this model and we'll get back to you as soon as possible!
6 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jeff
February 7, 2022
None of the wash blades move. Though, it appears that there is water coming from the bottom wash blade to coat the entire washer (all the blades have been cleaned, the tubes have been checked). Is this a circulation pump failure? The washer fills and drains perfectly.
For model number MDB8989SHZ0
Hello Jeff, thank you for your question. We have researched the model you have provided, and we would suggest the Dishwasher Pump and Motor Assembly, part number PS11756615. If you need help placing an order, our customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Dish washer will not start. When I set it for quick wash and push start, the add a dish light comes on and washer will not start.
For model number MDB8989SHZ0

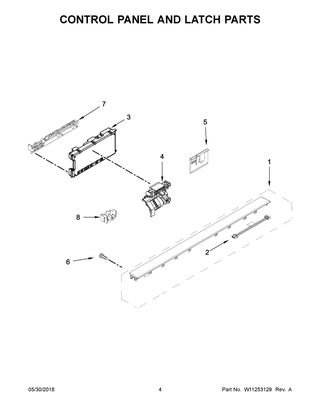

Hello John, thank you for contacting us. We would recommend checking the door latch, part number PS11756967, and ensuring that the door is getting properly closed. If this does not help, the issue is probably related to the control board, part number PS12583931. Customer service is available 7 days a week if you require assistance placing an order. Thanks again for reaching out!
Dishwasher not washing dishes. Collected water at start up is pumping out but nothing happens after that. The blue light comes on.
For model number MDB8989SHZ0
Hi Mike, thank you for contacting us. According to our research, the flashing blue light indicates that the cycle needs to be resumed or started. We would suggest resetting the dishwasher by unplugging it for five minutes. If the issue remains, the problem might be with the door latch, part number PS11756967. Checking the latch for continuity using a multimeter might help. Good luck with the repair!
Dishwasher continues to stop in middle of either wash, rinse or dry. Many times power flashes and we can restart, but not for long. Sometimes power goes totally out for several hours, before we get a flashing light again. We"ve been able to limp to the drying cycle most times
For model number MDB8989SHZ0
Hi Dave, thank you for reaching out. Based on the description that you have provided, we would recommend replacing the control board, part number PS12583931, to fix the issue. It manages the functions of the dishwasher, such as washing, draining and drying. We hope that helps!
Dishwasher fills with water.
Doesn’t spay any water.
It drains the water.
Blue light is on and doesn’t flash.
This is with any cycle selected.
For model number MDB8989SHZ0

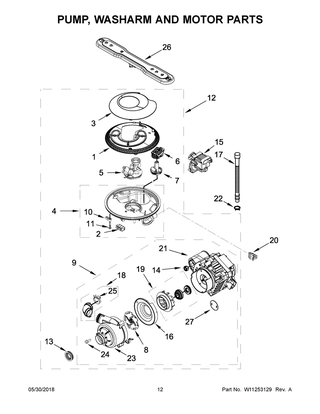

Hello Dellen, thank you for getting in touch. Based on our understanding of the issue, we would suggest checking the circulation pump, part number PS11723102, to solve the problem. A faulty circulation pump can most probably cause this issue. We hope this helps!

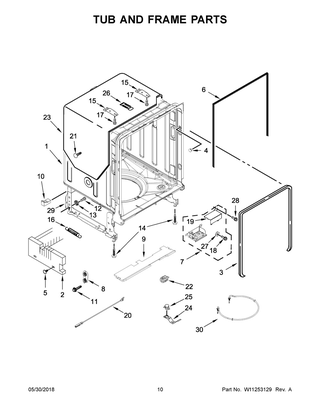

Pulled dishwasher from under counter, attached link to spring, hooked spring back into frame/chassis, threaded link through pulleys, attached other end of link onto door, reinstalled dishwasher under counter. All's well. Note-I purchased an extra link anticipating that the other one will fail. They're cheap enough.
Caviat: The actual repair is less than 15 minutes, but I spent a lot of time playing with it before I figured out it was that easy and fast. You don't need to remove the dishwasher from the counter to do this. And it will probably help to look at the new part closely so you can understand where the retainer clip is to press it and release the old pump.
First remove the water from the dishwasher pan that would not drain with a wet/dry vac. Otherwise the water will all drain on the floor when you remove the pump. Then remove the two screws on the kickplate on the front of the unit below the door. Remove the kickplate/maintainence access cover. The drain pump is on the right about 8 inches in. Using two hands you grasp the drain pump with your right hand and use the left hand to push the retaining clip down. Then the drain pump will rotate 1/4 turn counterclockwise and can be removed without pulling the dishwasher out. There is likely to be some water leak out that was traped in the pump housing that you can not reach with the vac. Disconnect the wire. Connect the wire to the new pump, put it in place and 1/4 turn clockwise to install it. Replace the kickplate and you're done.
1. Open the dishwasher and remove the two plastic grommets about halfway down on either side of the opening. Then remove the two screws under the grommets.
2. Remove the kick plate under the door. May have to lower unit by turning the feet using the adjustable wrench.
3. Make sure you have enough slack in the water input line and electrical wiring that you can pull the dishwasher out about 12 inches or more.
4. There is a spring and nylon rope link on both sides of the unit. Probably just one link is broken, but the replacement comes with two, so you can replace both or save one as a spare. Look at the good side and it should be pretty self explanatory how it attaches. I found it easiest to first thread the link around the lower pulley, then attach the link to the spring, then spring to the rear support, then the link to the door.
