LTF2112ARW Admiral Refrigerator - Overview

Sections of the LTF2112ARW

[Viewing 9 of 9]

Manuals & Care Guides for LTF2112ARW

Click to download
Keep searches simple, eg. "belt" or "pump".
Light Bulb - 40W – Part Number: 8009
Light Bulb - 40W
★★★★★
★★★★★
(27)
PartSelect #: PS884734
Manufacturer #: 8009
This an authentic OEM 40-Watt replacement light bulb, used in a number of household appliances. It is specially designed to withstand extreme temperatures, which is why these replacement bulbs are mos...
$13.36
  In Stock
Replacement Ice Maker – Part Number: D7824706Q
Replacement Ice Maker
★★★★★
★★★★★
(26)
PartSelect #: PS2121513
Manufacturer #: D7824706Q
NOTE: This replacement ice maker mechanism does NOT come with a cover, shut off arm, a wire harness, or the mounting hardware. Those must be ordered separately, or you can use the existing parts.
$177.43
  In Stock
Screw – Part Number: WP400021-1
Screw
PartSelect #: PS11742240
Manufacturer #: WP400021-1
Sold individually.
$16.90
  In Stock
Water Fill Cup and Bearing – Part Number: WP628356
Water Fill Cup and Bearing
★★★★★
★★★★★
(1)
PartSelect #: PS11743318
Manufacturer #: WP628356
This icemaker water inlet cup is three inches long. It is all white in color and is made of plastic.
$51.52
  In Stock
Defrost Timer - 120V 60Hz – Part Number: WP68233-3
Defrost Timer - 120V 60Hz
★★★★★
★★★★★
(4)
PartSelect #: PS11743747
Manufacturer #: WP68233-3
This defrost timer will cycle for twenty-one minutes after every ten hours of run time. The defrost timer acts like a clock. It continually advances and alternates between activating the cooling cy...
$157.20
  In Stock
SWITCH – Part Number: W11291138
SWITCH
★★★★★
★★★★★
(2)
PartSelect #: PS12584655
Manufacturer #: W11291138
This is a light switch for your refrigerator. It activates when the door of your appliance is opened, and it will turn the light inside on and off. You will need to replace this part is if your light ...
$36.66
  In Stock
Cycling thermostat – Part Number: WP627985
Cycling thermostat
★★★★★
★★★★★
(1)
PartSelect #: PS11743313
Manufacturer #: WP627985
This part is also known as the cycling thermostat and this bi-metal device controls the activation of the icemaker ejection cycle.
$79.14
  On Order
Single Outlet Water Valve – Part Number: WP61005273
Single Outlet Water Valve
★★★★★
★★★★★
(1)
PartSelect #: PS11743223
Manufacturer #: WP61005273
This valve has a 1/4" tubing inlet connection. When energized, this part releases water from the supply line into the ice mold.
$121.31
  In Stock
Evaporator Fan Blade – Part Number: 63002045
Evaporator Fan Blade
PartSelect #: PS2063117
Manufacturer #: 63002045

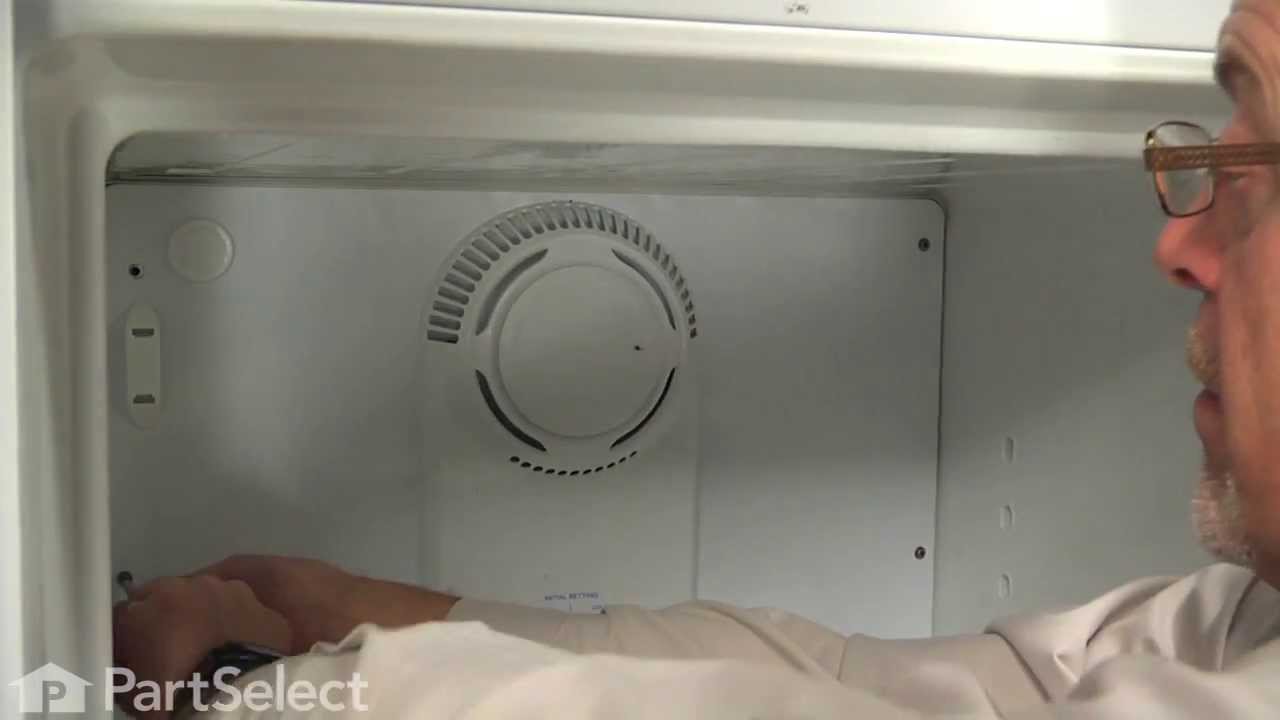

This fan blade attaches to the evaporator fan motor which is located in the back of the freezer.
  No Longer Available
Screw – Part Number: 67006425
Screw
PartSelect #: PS1845599
Manufacturer #: 67006425
This screw is sold individually
$10.25
  In Stock
Screw – Part Number: 63001318
Screw
PartSelect #: PS2062401
Manufacturer #: 63001318
This screw is sold individually.
  No Longer Available
Hinge Washer – Part Number: 63001079
Hinge Washer
PartSelect #: PS2062176
Manufacturer #: 63001079
  No Longer Available

Questions And Answers for LTF2112ARW

Ask our experts a question about this model and we'll get back to you as soon as possible!

1 question answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Randy
March 3, 2020
What year is this refrigerator ?
For model number LTF2112ARW
PartSelect logo
Hi Randy, Thank you for your question. To verify the year the freezer was made, we would also need the serial number from it. We hope this helps. Thank you and have a great day.

2 people found this helpful.

Was this helpful?
Thank you for voting!
  • 1

Common Symptoms of the LTF2112ARW

[Viewing 14 of 14]
Ice maker not making ice
Fixed by
these parts
Fixing Fixing Fixing
Show All
Leaking
Fixed by
these parts
Fixing Fixing Fixing
Show All
Light not working
Fixed by
these parts
Fixing
Show All
Ice maker won’t dispense ice
Fixed by
these parts
Fixing Fixing Fixing
Show All
Fridge too warm
Fixed by
these parts
Fixing Fixing Fixing
Show All
Noisy
Fixed by
these parts
Fixing Fixing Fixing
Show All
Freezer section too warm
Fixed by
these parts
Fixing Fixing Fixing
Show All
Ice maker dispenses too much ice
Fixed by
these parts
Fixing Fixing
Show All
Freezer not defrosting
Fixed by
these parts
Fixing
Show All
Ice maker dispenses too little ice
Fixed by
these parts
Fixing
Show All
Door Sweating
Fixed by
these parts
Fixing
Show All
Will Not Start
Fixed by
these parts
Fixing
Show All
Won’t start
Fixed by
these parts
Fixing
Show All
Door won’t open or close
Fixed by
these parts
Show All
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Icemaker producing few or no cubes and often leaving "kling-ons" on ice tray
Interior surface of ice tray felt rough & flaky (coating deteriorated) so cubes would not release.
Unplug appliance.
Remove timer cover by hand pressure @ edge.
Remove single attachment screw & bracket at lower front of icemaker.
Disconnect wiring harness from socket @ rear of compartment.
Tricky part was determining what type of connection held the other two attachment points along the long edge of the icemaker. I did not have repair manual or useful drawing but looked @ PartsDirect pic of side brackets & used a small mirror to confirm that mine were also some sort of "snap in" attachment.
Remove icemaker unit by pushing upward and outward on the unit. I takes a good bit of pressure and will pop loose, but be careful not to break attachment bracket from freezer wall.
Scavenge shut off bar and wiring harness from old icemaker once you have it out & attach to new one before installing it back in freezer.
Again, you might find a mirror useful to align those pesky snap-in brackets with the new unit.
Since you probably kept your freezer running while waiting for the part, the plastic snap-ins will be cold and brittle. I warmed them up first by applying a dampened cloth heated in the microwave to make them a little more pliable.
A good push of the new unit towards the snap-ins along with some upward force will get it stable.
Reattach the metal screw in bracket & connect the wiring harness to rear plug... and don't forget to plug the whole thing back in.
It will take awhile for the first batch of cubes dump as the timer may need to cycle completely around to get to the fill cycle... be patient.
Dump the first couple of batches of cubes just to make sure you're free of any residue.
Parts Used:
Replacement Ice Maker
  • Bernie from Diamond Bar, CA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver
801 of 885 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water overflowed ice maker turnning ice bucket into solid mass of ice
My ice maker has been shedding its non-stick coating for over a year. Within the last month of so, it started pouring water into the ice bucket below, turning it into a solid mass of ice. So I purchased a new ice maker assembly. I encountered two problems not mentioned in the 21 or so do-it-yourselfer repair stories that precede this one. First problem: one of the three screws that hold the ice maker to the refrigerator wall is hidden behind the large (black) end of the ice maker and is difficult to access. Before trying to replace the ice maker, make sure you have the physical dexterity to remove that screw. Second problem: it is not apparent how to remove the wire harness that plugs into the ice maker assembly. BEFORE you can remove the wire harness, you MUST remove the large white cap that covers the black end of the ice maker assembly and then push in a retaining tab to release the wire harness. If you don't do this, the wire harness will not release. Other than those two problems, it was relatively easy to remove three screws, unplug the wire harness, transfer three small, metal parts from the old ice maker to the new, plug in the new wire harness, mount the ice maker assembly so that the water tube is in the proper position, and then re-install the three screws. The ice maker works fine now. (P.S. I was told by an expert that the real problem might be a malfunctioning fill valve. I would have replaced the fill valve if replacing the ice maker assembly had not fixed the problem.)
Parts Used:
Replacement Ice Maker
  • Harry from Grand Ledge, MI
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
269 of 364 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The Bearing Cup Assembly was broken and ice would jamb against it during the ice making cycle.
I removed the ice maker from the refrigerator, by removing one screw on the underside bracket and loosening the two screws at the top side, then lifting the ice maker off the loosened screws. I then unplugged the electrical harness that supplies power from the refrigerator to the ice maker. I then disassembled the ice maker by removing the front cover which is snapped in place, then removing two recessed screws at the front. I removed the broken part, I then reassembled the ice maker with the new part. I replaced the two recessed screws at the front and snapped on the cover. Then I reinstalled the ice maker in the refrigator by plugging in the harness, slipping the ice maker over the loosened screws in the refrigerator and replacing the screw that was removed from the underside bracket. Tightening all the screws completed the project.
Parts Used:
Water Fill Cup and Bearing
  • David from Chester, CA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Nutdriver, Screw drivers
107 of 133 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
