Models > MVWB765FW3

MVWB765FW3 Maytag Washer - Overview

Sections of the MVWB765FW3

[Viewing 5 of 5]
Keep searches simple, eg. "belt" or "pump".
Touch-Up Paint - White – Part Number: 72017
Touch-Up Paint - White
★★★★★
★★★★★
(16)
PartSelect #: PS385132
Manufacturer #: 72017
This 18 ml bottle of white appliance touch-up paint is used to cover scratches or marks on your appliance. The white touch-up paint can be used on refrigerators, microwaves, ranges, clothes dryers, an...
$10.20
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Hose Clamp – Part Number: WP285655
Hose Clamp
PartSelect #: PS11740613
Manufacturer #: WP285655
This hose clamp is sold individually.
$14.15
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!

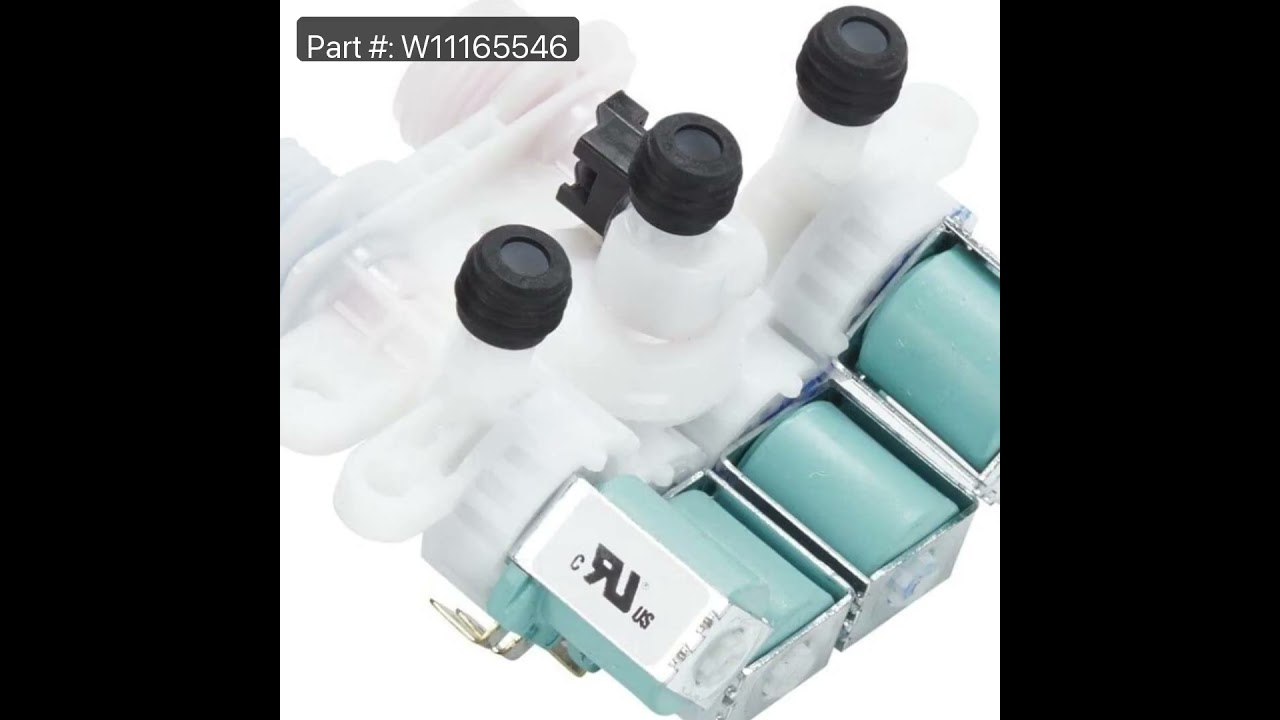

Water Inlet Valve – Part Number: W11165546
Water Inlet Valve
★★★★★
★★★★★
(9)
PartSelect #: PS12348013
Manufacturer #: W11165546
$112.33
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Screw, 8/18 x 3/8 – Part Number: WP90767
Screw, 8/18 x 3/8
PartSelect #: PS11746840
Manufacturer #: WP90767
This screw is sold individually.
$6.91
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Washer Drain Hose – Part Number: W11244231
Washer Drain Hose
★★★★★
★★★★★
(2)
PartSelect #: PS12578897
Manufacturer #: W11244231
The drain hose carries used water from the washer to your house drain.
$31.80
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Washer Washplate Screw – Part Number: W10752187
Washer Washplate Screw
PartSelect #: PS10064547
Manufacturer #: W10752187
$6.91
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Lid Lock Assembly – Part Number: W10810403
Lid Lock Assembly
★★★★★
★★★★★
(2)
PartSelect #: PS11722981
Manufacturer #: W10810403
$183.30
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Hose Clamp – Part Number: WP356138
Hose Clamp
PartSelect #: PS11741854
Manufacturer #: WP356138
This clamp helps to prevent leaking by holding the end of water hose in place.
$13.81
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Affresh Washing Machine Cleaner - 3 pack – Part Number: W10135699
Affresh Washing Machine Cleaner - 3 pack
★★★★★
★★★★★
(2)
PartSelect #: PS1960673
Manufacturer #: W10135699
This front load washer cleaner removes odor-causing residue. Use it once a month and it will keep your machine fresh and clean. Package comes with 3 tablets.
$16.07
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
AGITATOR – Part Number: W11550891
AGITATOR
★★★★★
★★★★★
(1)
PartSelect #: PS16620354
Manufacturer #: W11550891
$114.25
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Water-Pump – Part Number: W10876600
Water-Pump
PartSelect #: PS11738156
Manufacturer #: W10876600
$214.40
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!
Dryer Screw – Part Number: WPW10109200
Dryer Screw
PartSelect #: PS11748297
Manufacturer #: WPW10109200
11-16 x 3/4 Sold individually.
$10.14
  In Stock
Order within the next 1 hr and 37 mins and your part ships today!

Questions And Answers for MVWB765FW3

Ask our experts a question about this model and we'll get back to you as soon as possible!

43 questions answered by our experts.
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Scott
January 5, 2022
Washer makes an extremely loud grinding sound (sounds like a garbage disposal) at the very end of the drain/spin cycle. Last for several Seconds and than stops
For model number MVWB765FW3
PartSelect logo
Hello Scott, Thank you for the question. This is normally an indication the Washer Drain Pump is blocked, damaged or faulty and may need to be replaced. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Additional Links:
Cliff
October 22, 2021
The agitator has raised up from the bottom of the tub and sucked a bed sheet under the agitator and won't come out.
For model number MVWB765FW3
PartSelect logo
Hello Cliff, Thank you for the question. Sounds like the Agitator was loose. Under the cap at the top of the agitator there is a bolt you can remove. Once removed, the Agitator will come off the post so you can remove the Sheet. You just need to reinstall the agitator and make sure it is secure to avoid material getting caught up again. We hope this helps!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Mollie
February 8, 2023
Left hinge broke and broke the plastic around the lid on that side as well. Can I order the lid and hinges together as 1 item or do I order separately
For model number MVWB765FW3
PartSelect logo
Hi Mollie, thank you for contacting us. According to our research on your model, we found that the lid, part number PS11746533 and hinges, part number PS12731259 come separately. If you need help placing an order, customer service is open 7 days a week!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Edward
May 10, 2023
power at the wall socket, and machine won't power up,when you touch console.
For model number MVWB765FW3
PartSelect logo
Hi Edward, thank you for the question. Based on our understanding of the issue, we would suggest that you first ensure that the door or lid is closed. Most machines will not run with the door or lid open. If that is not causing the issue, then you may need to check the electronic control board, part number PS16217891. If it is faulty, you may need to replace it. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Steve
November 17, 2023
Often the machine will shut off at the start of the cycle, even before the door locks. Gives a single "powering down" chime and powers completely off, so no chance to see any error code. Not every time, and the load does not seem to affect this behavior, as it will happen even with an empty drum. Seems random, but getting more frequent. We know it will be a successful run when we hear the door lock.
For model number MVWB765FW3
PartSelect logo
Hi Steve, Glad to hear from you. If the washer shuts off at the start of the cycle, we would recommend checking the lid switch, part number PS11722981. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
  • 1
  • 2
  • 3

Common Symptoms of the MVWB765FW3

[Viewing 8 of 8]
Leaking
Fixed by
these parts
Fixing Fixing Fixing
Show All
Lid or door won’t close
Fixed by
these parts
Fixing Fixing Fixing
Show All
Will not agitate
Fixed by
these parts
Fixing Fixing Fixing
Show All
Will not drain
Fixed by
these parts
Fixing
Show All
Will Not Start
Fixed by
these parts
Fixing
Show All
Water Filling Issues
Fixed by
these parts
Fixing
Show All
Does not dispense fabric softener or detergent
Fixed by
these parts
Fixing
Show All
No hot or cold water
Fixed by
these parts
Fixing
Show All
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Scratches in Surface
This product comes in a bottle with a brush like Liquid Paper. It goes on incredibly easy. A second coat might be needed. I wanted to prevent rust from setting in so I covered the scratches and dings. The paint is a little brighter since my washer is 10 years old but it still looks great.
Parts Used:
Touch-Up Paint - White
  • Michelle from Richardson, TX
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
64 of 125 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!

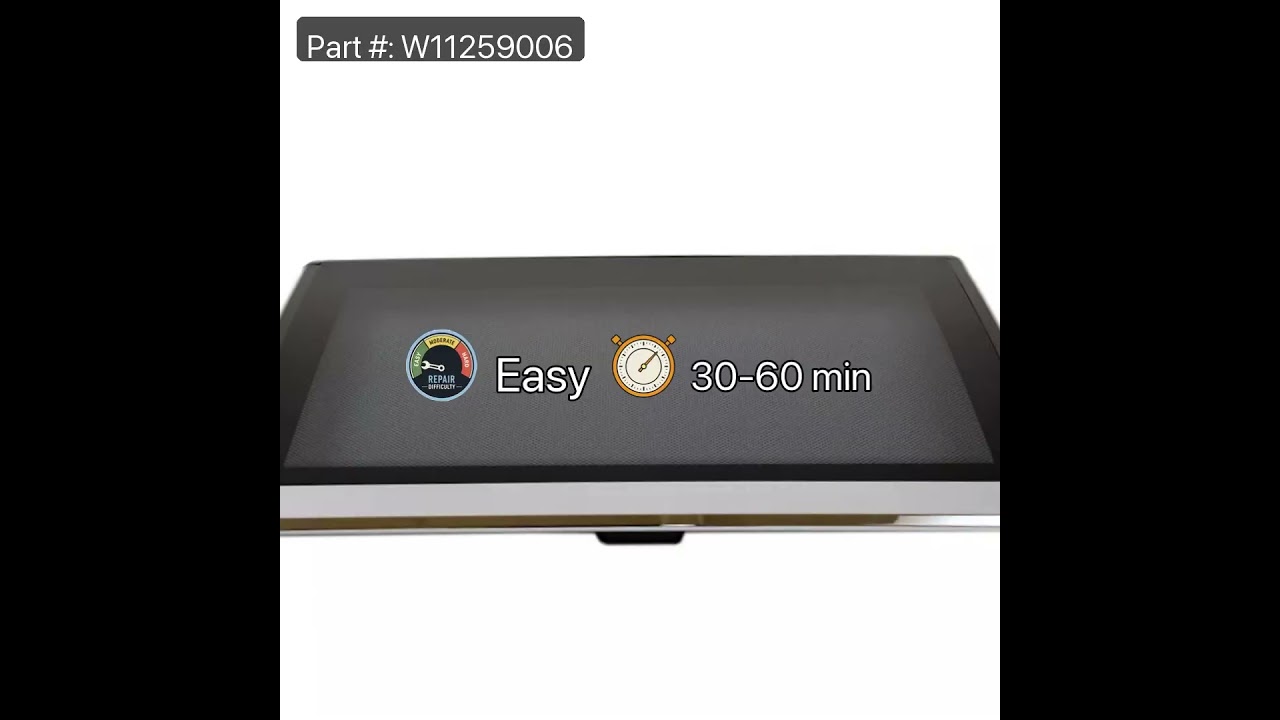

Broken lid frame at left hinge.
Raised lid to remove two Torx head screws from each hinge. Lid will then lift off of hinges. Installation of new lid was the reverse of the removal procedure. It is best to install one hinge to the lid by removing that hinge from the washer. The lid can then be installed by inserting that hinge into it's spot and then over the other hinge. Install the hinge screws into the second hinge and the job is complete. The lid now closes properly allowing the automatic lid lock to function properly.
Parts Used:
Washer Lid
  • Greg from RICHMOND, VA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Socket set
25 of 27 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Lid was broken at the hinge and would not stay closed
Removed the old lid by removing the two screws on both sides of the lid holding it to the hinge. Then pull upon the lid to remove. Slide the new lid back on the hinges being careful to slide in the right slot in the lid. Replace the screws through the lid into the hinges and your done
Parts Used:
Washer Lid
  • Gary from GLADE VALLEY, NC
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
15 of 18 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
