This part is the replacement water fill nozzle for your washer. It is white and tan in color, made of plastic, and is approximately 7 inches long and 4 inches wide. The water fill nozzle is also known as the water inlet assembly and directs the fill water into the tub. Over time the nozzle can become cracked and damaged, and this can cause it to leak. A damaged nozzle will need to be replaced. Be sure to disconnect the water supply to the washer before you begin this repair. You should also determine if any of the other parts that transport water into the washer are leaking, including the water inlet hose, and if they need to be repaired as well. This part is sold individually and is a genuine OEM part.
How Buying OEM Parts Can Save You Time and Money
Part Videos

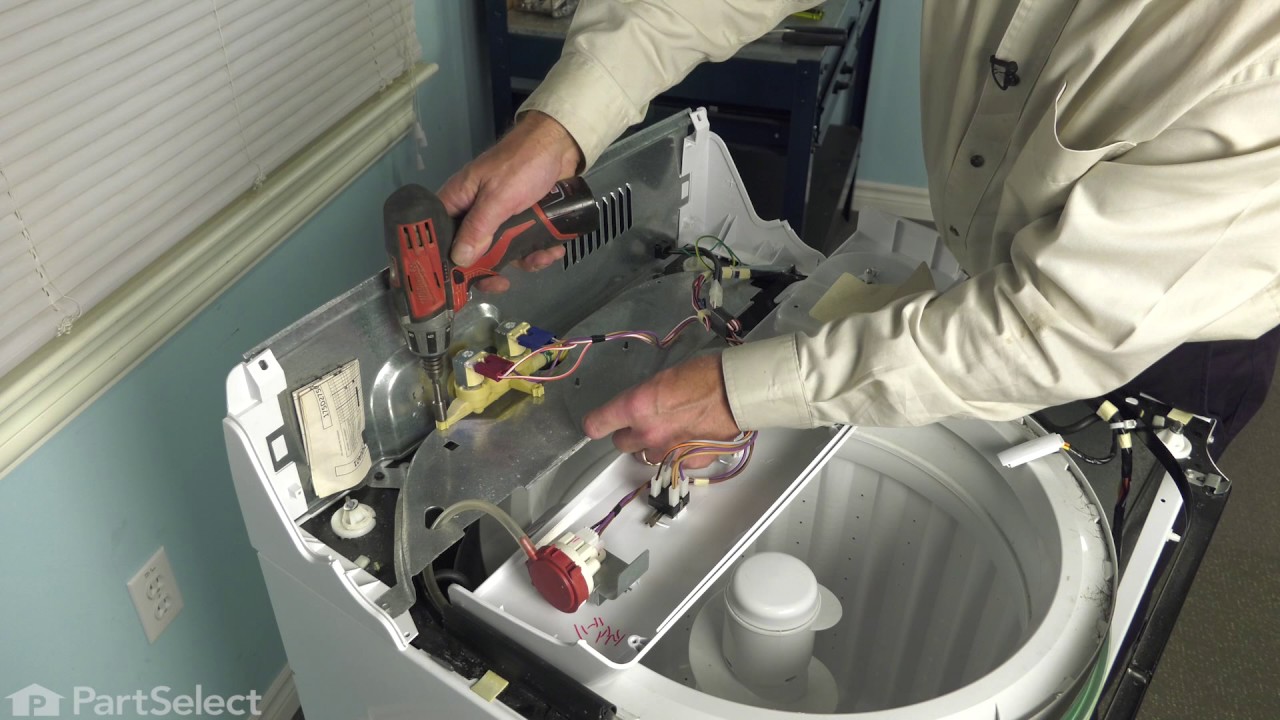

Replacing your General Electric Washer Washer Water Fill Nozzle
Troubleshooting
This part fixes the following symptoms:
Leaking
This part works with the following products:
Washer.
This part works with the following products:
General Electric, Hotpoint.
Part# WH41X10077 replaces these:
AP3189243, 963695, J27-913, WH41X10037, WH41X366
Customer Reviews
Average Rating:
★★★★★
★★★★★
2 Reviews
5.0
Filter By Rating:
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Sharon L - July 31, 2021
Verified Purchase
Fast delivery with quality part.
The website is super easy to navigate. I found my part, ordered it, it shipped super fast. The company sent me a video how to repair my appliance. I could not be happier with Part Select.
★★★★★
★★★★★
Frank M - March 6, 2021
Verified Purchase
Easy ordering
Part was here in no time and it was a perfect fit. Thanks
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 3.5 / 5.0, 9 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Water leaking from filler hose outside of tub
removed washer front panel, top panel to access the water fill spout and hose. Disconnected and replaced. personnel at part select were very knowledgable about detailed part and the overnight service was right on time. I would recommend part select for your next appliance parts needs.
Other Parts Used:
Paul from Talihina, OK
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Screw drivers
10 of 15 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
A Leak Thought It Was A Hose At First But Still Leaked When Washer Was Not Running
Removed all visible screws to expose water valve . . Removed water valve , hose & water inlet and replaced with new . Straight forward and simple . Very fast delivery of parts that was huge . . Thank you
I had to replace the water fill nozzle on my GE washer, and having the instruction video on the parts page is a real time-saver. It shows how to remove each part on your washer in order to access the area where the part needs to be replaced. Start to finish, about 20 minutes. Easy peasy.
Other Parts Used:
Susan from WICHITA FALLS, TX
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water dripping into the washer when washer was not in use
I followed instructional video on partselect.com, it was very easy, but it didn't take care of the problem. I got to to order "TRIPLE WATER VALVE" and that did the trick. After opening the washer first time (for water fill nozzle), it took me even less time. You don't have to take the front panel off to replace the water valve.
Other Parts Used:
Beata from STUART, FL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water Leaks
I pulled the top off of the washer and found that my leak was coming from a small hole in the hose and water inlet. I had to remove 2 small bolts and a hose clamp to remove the old part,I did the reverse to install new part.
Other Parts Used:
Daniel from West Columbia, SC
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Socket set
2 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
hole in the hose part
popped the front off and unscrewed the top to get to the water inlet. With plyers twisted the wire tie that holds the hose in place and unscrewed the tiny screws off to get the inlet off. then replace it with my new Hose & Water Inlet.
Remove top of washer control panel to access filler. My hands are not large by t was difficult removing the old part and carefully trying not to drop mounting screws. Had to loosen screws twisting threads with pliers. No access for regular Phillips screwdriver. Patience is needed.
Other Parts Used:
Burley from WINTER PARK, FL
Difficulty Level:
Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leaking at housing
This was not hard to do.removed top screws and back plate screws. Water inlet valve has 3 screws and a hose clamp.this job was thirty min. tops.goes back together much faster then taking it apart.
Other Parts Used:
dennis from harwinton, CT
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Socket set
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
6 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jimmie
August 22, 2017
Water leaking at top back inside tub cold water side just want to be sure on part thanks
For model number GCWP1800D0WW
Hello Jimmie, thank you for contacting us. That sounds like it would be the water valve needing to be replaced. The part number is PS11721803 Hope this helps!
5 people found this helpful.
Was this helpful?
Thank you for voting!
Jim
December 13, 2017
Does this piece stop the flow of water into drum
Hi Jim, Thank you for the question. The water pressure switch or timer will tell the valve when to turn off. It will depend on the model number. If you can provide a model number of the appliance we will be happy to take a look for you. Look forward to hearing from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Jim
December 13, 2017
My washer will not accept water, will this part solve problem?
For model number gtwn2800d1ww
Hi Jim, Thank you for the question. If the appliance is not filling with water, I suggest replacing the Water Inlet valve. PartSelect Number: PS11721803. The Nozzle would not prevent the water from filling the appliance. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Katherine
February 21, 2023
I have water drilling into the machine from the inside water filler. It seems like this part will help stop that leak, correct?
For model number Whdsr417d0ww
Hi Katherine, thank you for reaching out. According to our research, first check the water fill nozzle, part number PS756806. If this does not help, then you may need to check the triple water valve, part number PS1022476. We hope this sorts out your problem!
Water sprays from the back of washer where the hot and cold water screw into washer.. what part do i need to replace it
For model number GTW180SSJOWW
Hi Lily,
Thank you for your question. Based on what you described it sounds like the hose may not be secure where they are attached to the water inlet valve. You may need to tighten them. If you need new clamps, we do sell them. There is a kit of 2 hose clamps that you can purchase. The part number for the kit is PS270806. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Chuck
November 1, 2019
I have a hot point washer. The part ps756806 (like clam shell) leaks,
I shut water off to the washer but i it still leaks.What causes this?What is the purpose of this part? it is a dripage,
For model number whtwp1400f1ww
Hi Chuck, this part is a water fill nozzle,if it is leaking the nozzle may be faulty and needs replacement. Thank you for your question and good luck with your repair!
