See part 3 in the diagram
Replacing your Kenmore Dishwasher 3rd Level Wash Spinner Kit play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 10PM EST

customerservice@partselect.ca

3rd Level Wash Spinner Kit

★★★★★
★★★★★
20 Reviews
$31.06   On Order

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS734590
Manufacturer Part Number 8193768
Manufactured by Whirlpool
Product Description

3rd Level Wash Spinner Kit Specifications

This part is the top spinner located at the very top of the wash tub. Water passes through all the spinners causing it to dispense all around the tub.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Not cleaning dishes properly
This part works with the following products:
Dishwasher.
This part works with the following products:
Kenmore, KitchenAid, Whirlpool.
Part# 8193768 replaces these:
AP3177952, 961493, 8193505, 8193768, 8268296, 8519736
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

5 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Beverly
    August 17, 2017
    My spinner fell off and I need to replace it. Does the 3rd level wash spinner kit have everything i need, or do I also need the screw 3400850 (part # 11 on the upper wash & rinse parts diagram)?
    For model number gu1200xtkq0
    Hello Beverly, Thank you for your question. The 3rd level wash spinner kit does include everything you need to replace the spinner. The screw is used to hold the spray tower in place. I hope this helps!

    12 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Diana
    February 5, 2018
    Do i have to loosen a screws on spray tower
    Hi Diana, Thank you for the question. Here is a link to the video on how to install the Spinner Kit. Hope this helps! https://www.youtube.com/watch?v=aVG-UEtb2C8

    2 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Tom
    December 18, 2018
    Thank you for your prompt answer, but it was a little unclear. You said the leak could be affecting the pressure and preventing this part from spinning, but the part is not spinning because it fell off along with the pin that holds it. I do not see any other cause of the leaking and still wonder if i replace the spin kit, will it fix the leak. Thank you.
    For model number 66517379301
    Hello Tom, thank you for your question. The water may be coming from the to of the unit straight out towards the door, which can cause some leaking water. If you haven't noticed any water before this part fell off, it is probably the cause of the leak. I would recommend replacing this part and if the leak continues we can provide some troubleshooting information at that time. I hope this helps!

    2 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Diana
    February 5, 2018
    How so you release clips on spray arm in back and at top
    Hi Diana, Thank you for your question. For information on how to release the clips from the spray arm, there is a video listed with the part on our website that you may reference. I hope this helps. Thank you and have a great day!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Tom
    December 17, 2018
    I found the part inside the dishwasher but not the locking pin. I noticed some water on the floor. Could this part falling off cause the leaking?
    For model number 66517379301
    Hi Tom, thank you for your question. It could be. It depends on if the leaking is effecting the water flow up to that spinner. If the leaking is effecting the pressure that could be why this part is not spinning. I do imagine that if you figure out what is causing the leaking and if there are no clogs in your tubing and filters, that may fix the issue you are having with this part. I hope that helps. Good luck with your repair.

    Was this helpful?
    Thank you for voting!
      Part Videos

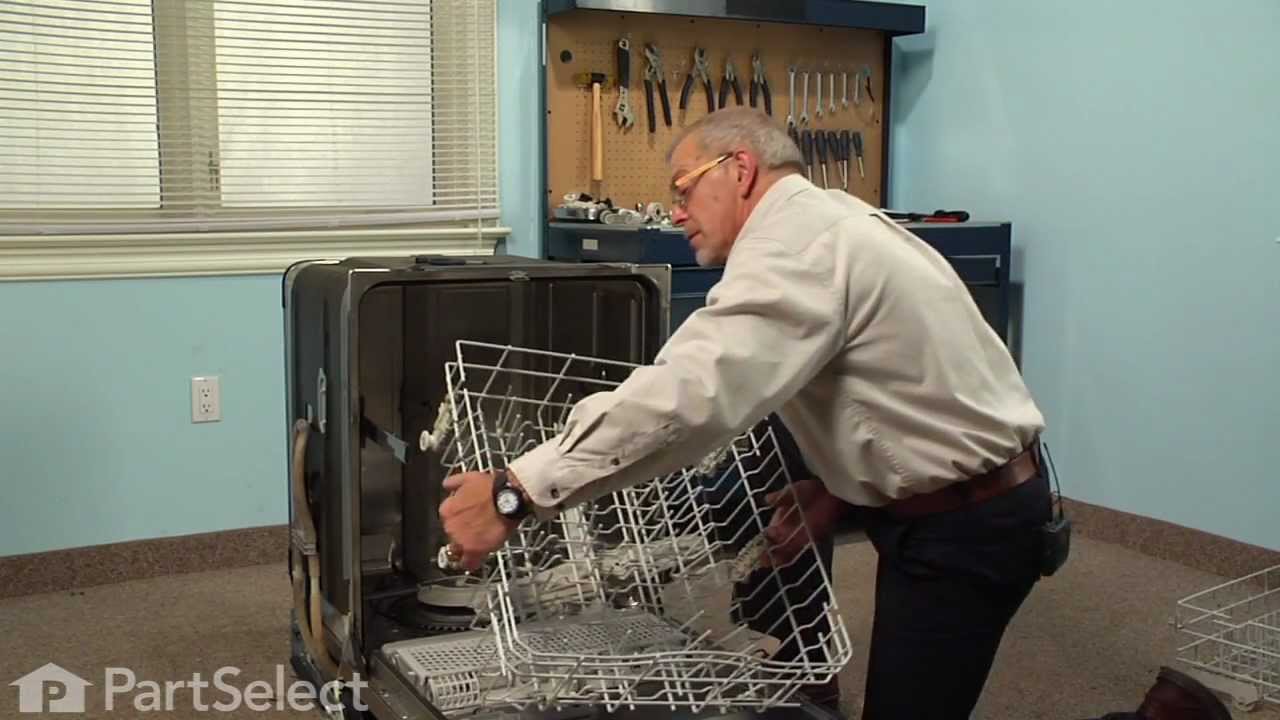

      Replacing your Kenmore Dishwasher 3rd Level Wash Spinner Kit

      Replacing your Kenmore Dishwasher 3rd Level Wash Spinner Kit play video
      Customer Repair Stories
       Average Repair Rating: 5.0 / 5.0, 20 reviews. What's this?
      Sort by:
      Sorry, we couldn't find any existing installation instruction that matched.
      Old spinner fell after washing the dishes.
      Carefully unscrewed the top screw holding the spray arm so it doesn't fall into the tub.

      Pull down the arm gently and pop out any remaining parts from the old spinner.

      While the spray arm is pulled down, snap the two parts of the spinner together: one from above the spray arm, and one from below the spray arm. (you need to snap them together before you screw the spray arm back, because it won't snap together otherwise.)

      Rescrew the spray arm and you are done.
      • Peter from princeton junction, NJ
      • Difficulty Level:
        Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      • Parts Used:
        8193768
      87 of 92 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      The overhead water spinner became detached and fell off
      First I removed the screw from the top water tube and then the upper screw from the vertical water tube at the back of the dishwasher. That gave enough flex to the tube assembly for access to the area I needed to get to, without having to remove it. Then I removed the old spinner retainer and installed the new one. I then snapped the spinner to the new retainer pin, put the tube back into position, and re-installed the screws -- and I was done.
      • Al from Yuma, AZ
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      • Parts Used:
        8193768
      19 of 20 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Clip no longer held spinner in place
      Bent the plastic housing down holding the spinner. Slipped the top of clip in slot on top of housing. Attached spinner and bottom of clip by holding top clip and pushing bottom of clip in place. No tools were needed.
      • Richard from Sandyston, NJ
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        8193768
      12 of 15 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Third level spinner fell off
      The part snaps on using two plastic retainers (included). You have to pull down gently on the feed tube at the top of the dishwasher to set the top retainer. After that it's a piece of cake.
      • Brandon from Antioch, CA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        8193768
      8 of 12 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Spinner button broke
      Loosened 1 screw to access spinner button. Removed broken spinner button, replaced it with new button,snapped spinner and wedge on button ,replaced screw and was done in about 2 minutes. Thanks for the pictures of installation and the quick shipping of parts. Not to mention the money saved by doing it without a repairman. Thank you
      • Richard K from Bloomington, IN
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      • Parts Used:
        8193768
      6 of 8 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      top wash spinner came off
      removed one screw holding the water tube up; gently pulled tube down to access male plug; removed worn plug, inserted new plug; snapped spinner and female plug from the bottom; replaced water tube screw.
      • Mark from Salem, OR
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      • Parts Used:
        WP8269307, 8193768
      3 of 3 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      top water spinner fell off
      Using past posts, this easy fix only required to bend down the plastic water ducting at the top of the dishwasher, and snap in the upper button to the lower button, which holds the spinner. I put newspaper down on the bootm of the dishwasher, in case I dropped the small plastic pieces.
      • Alan from Waterford, CT
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        8193768
      3 of 4 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Upper spinner broke, also pivot for bottom rack broke in half.
      I hooked the pivot on the rack, poof!! Done. I put the spinner pieces together, (they don't need any tools) then I just snapped them in the upper "hole" where they belong and voila!! Done.
      • Lee from Prineville, OR
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        8193768, 3385109
      3 of 6 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Upper wash spinner fell off
      It honestly took more time to take the dishwasher baskets out than the actual repair. Once the baskets were out, I put a piece of newspaper over the lower drain in case I dropped a part or the screw. I removed the top screw to access the broken part, removed it, and installed the new spinner. I put the screw back in and 2 minutes later, the dishwasher was in use once again.

      Too easy!
      • Thomas from Canyon Country, CA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      • Parts Used:
        8193768
      2 of 2 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      spinner plug missing
      gently pulled down the plastic housing for the spinner, pulled the old spinner and other end of plug out, replace all 3 parts (sandwiched the spinner with the male female parts)
      done!

      about 45 seconds total - no kidding!

      thanks much for the great website and comments/feedback

      and by the way.... i ordered the part in the afternoon online, next day in the mail i received the part. unbelievably fast service.

      thanks again!

      //dave
      • David from Auburn, CA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Pliers, Screw drivers
      • Parts Used:
        8193768
      2 of 2 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      20 Reviews
      5.0
      Filter By Rating:
      • 5 Stars
        19
      • 4 Stars
        1
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        0
      Sort by:
      Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
      Model Cross Reference
      This part works with the following models:
      PartSelect Number: PS734590
      Manufacturer Part Number: 8193768
      Brand
      Model Number
      Description
      Kenmore
      665110739120
      Dishwasher
      Kenmore
      665110739130
      Dishwasher
      Kenmore
      665110739140
      Dishwasher
      Kenmore
      665110739190
      Dishwasher
      Kenmore
      66514353300
      Dishwasher
      Kenmore
      66514353301
      Dishwasher
      Kenmore
      66515872000
      Dishwasher
      Kenmore
      66515874000
      Dishwasher
      Kenmore
      66515879000
      Dishwasher
      Kenmore
      66515882000
      Dishwasher
      Kenmore
      66515884000
      Dishwasher
      Kenmore
      66515887000
      Dishwasher
      Kenmore
      66515889000
      Dishwasher
      Kenmore
      66515892100
      Dishwasher
      Kenmore
      66515894100
      Dishwasher
      Kenmore
      66515899100
      Dishwasher
      Kenmore
      66515912000
      Dishwasher
      Kenmore
      66515912001
      Dishwasher
      Kenmore
      66515914000
      Dishwasher
      Kenmore
      66515914001
      Dishwasher
      Kenmore
      66515919000
      Dishwasher
      Kenmore
      66515919001
      Dishwasher
      Kenmore
      66515922000
      Dishwasher
      Kenmore
      66515922001
      Dishwasher
      Kenmore
      66515923000
      Dishwasher
      Kenmore
      66515923001
      Dishwasher
      Kenmore
      66515924000
      Dishwasher
      Kenmore
      66515924001
      Dishwasher
      Kenmore
      66515929000
      Dishwasher
      Kenmore
      66515929001
      Dishwasher
