Convection Fan Blade

★★★★★
★★★★★
1 Review
$23.24   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS3409337
Manufacturer Part Number 318398302
Manufactured by Frigidaire
Troubleshooting
This part works with the following products:
Range, Wall Oven, Microwave Oven Combo.
This part works with the following products:
Frigidaire, Kenmore, Electrolux, Crosley.
Part# 318398302 replaces these:
AP4566043, 139009100, 316136400, 318398300, 7316136400, 7318398300
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Part Videos

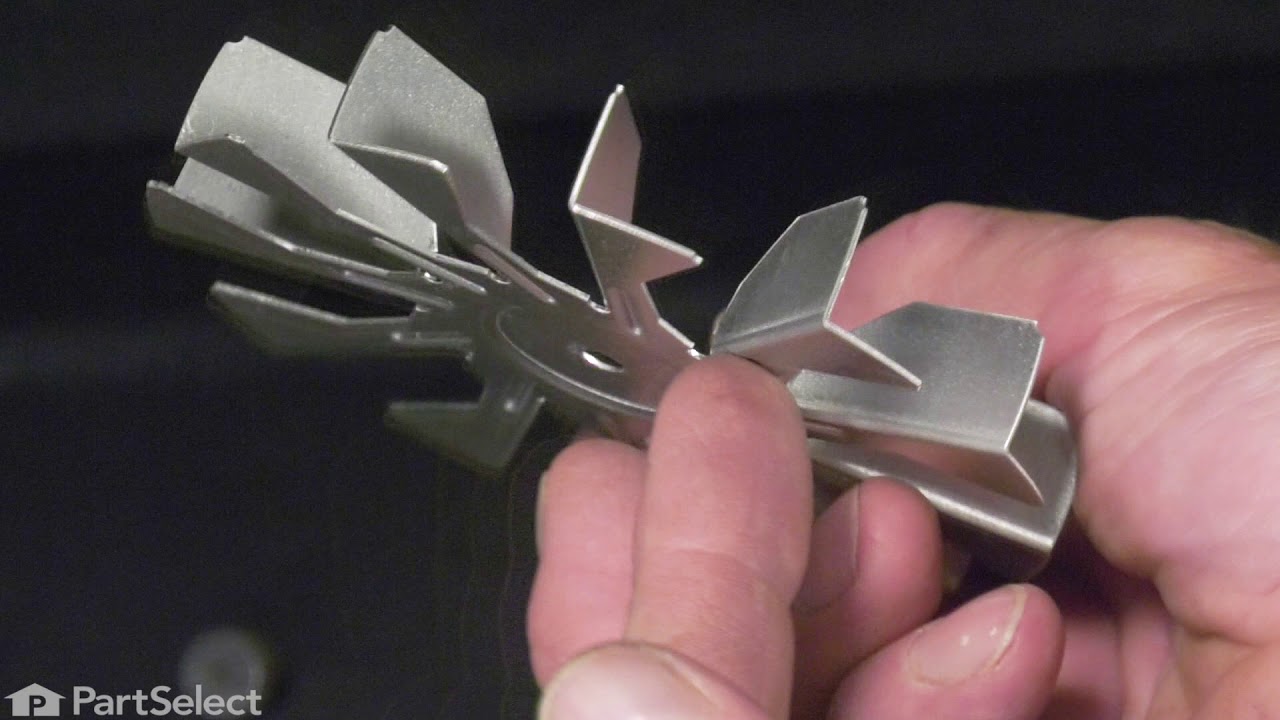

Replacing your Frigidaire Range Convection Fan Blade

Customer Repair Stories
 Average Repair Rating: 2.8 / 5.0, 1 reviews. What's this?
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    replacing the fan on a convection oven (fan was making a vibration noise)
    This was the first time replacing the fan. It is a lot easier to work in the oven compartment with the oven door removed, only two screws on the door and the hinges were released. I found that a couple of the screws were either rusted or stripped so I used a pair of pliers to remove the screws that were holding the diffuser in place. Once there was access to the fan I found that the fan was warped and that the blades were scraping against the back wall of the oven. The next challenge was to remove the retaining nut. I used a sheet metal screw to secure the warped fan to keep it from spinning. once I figured out that you have to turn the retaining nut to the right to loosen, it came off easily. 1/2" socket with extension. When I replace the fan I used two washers for spacers to make sure that the fan would not scrape the wall of the oven. Its been tested many times and the oven does not make that horrible sound anymore.
    • John from Stevensville, MD
    • Difficulty Level:
      A Bit Difficult
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Pliers, Screw drivers, Socket set
    • Parts Used:
      318398302
    12 of 16 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      1 Review
      5.0
      Filter By Rating:
      • 5 Stars
        1
      • 4 Stars
        0
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        0
        Sort by:
        Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
          Model Cross Reference
          This part works with the following models:
          PartSelect Number: PS3409337
          Manufacturer Part Number: 318398302
          Brand
          Model Number
          Description
          Kenmore
          79031032800
          Range
          Kenmore
          79031032801
          Range
          Kenmore
          79031032802
          Range
          Kenmore
          79031032804
          Range
          Kenmore
          79031033800
          Range
          Kenmore
          79031033801
          Range
          Kenmore
          79031033802
          Range
          Kenmore
          79031033803
          Range
          Kenmore
          79031033804
          Range
          Kenmore
          79031034800
          Range
          Kenmore
          79031034801
          Range
          Kenmore
          79031034802
          Range
          Kenmore
          79031039800
          Range
          Kenmore
          79031039801
          Range
          Kenmore
          79031039802
          Range
          Kenmore
          79031039804
          Range
          Kenmore
          79031042800
          Range
          Kenmore
          79031042801
          Range
          Kenmore
          79031042802
          Range
          Kenmore
          79031042803
          Range
          Kenmore
          79031042805
          Range
          Kenmore
          79031043800
          Range
          Kenmore
          79031043801
          Range
          Kenmore
          79031043802
          Range
          Kenmore
          79031043803
          Range
          Kenmore
          79031043805
          Range
          Kenmore
          79031049800
          Range
          Kenmore
          79031049801
          Range
          Kenmore
          79031049802
          Range
          Kenmore
          79031049803
          Range
