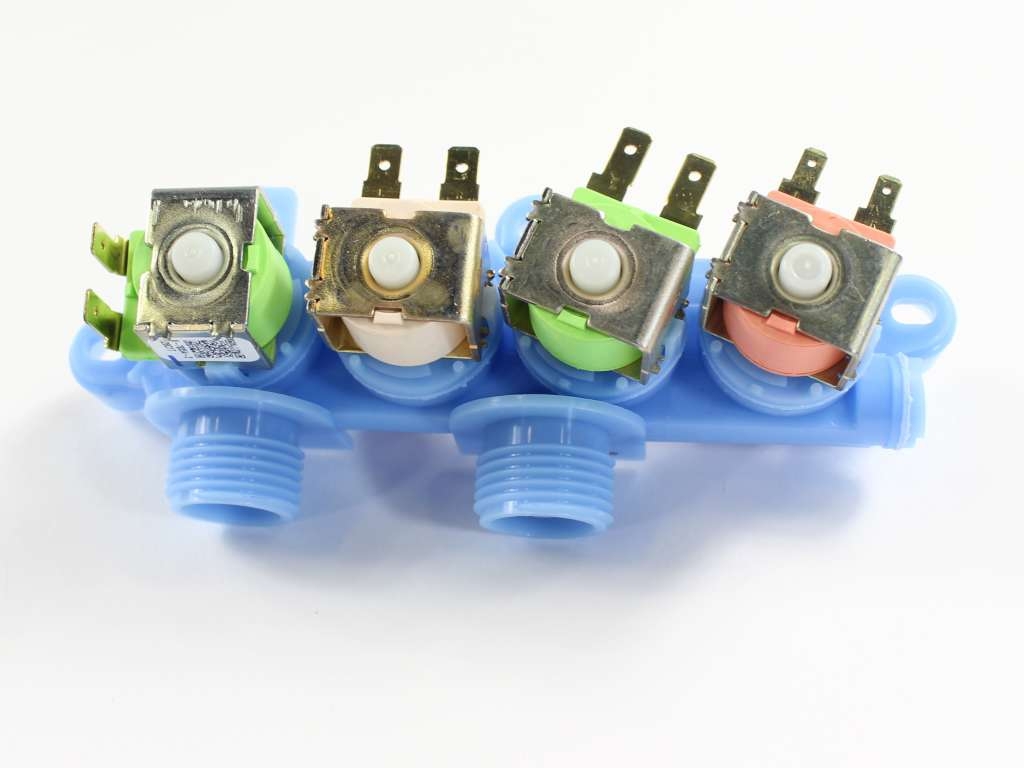

This inlet valve is designed for use in compatible top-load washing machines and plays a key role in regulating water flow during the wash cycle. Controlled by electrical signals, the valve opens and closes to allow water into the tub as needed. A malfunctioning inlet valve may prevent the washer from starting, trigger error codes, or cause water to leak into the tub, indicating the need for immediate replacement. This component features two individual valves, each equipped with its own wire terminal for proper electrical connection. Installation requires partial disassembly of the washer and basic tools such as needle-nose pliers, a socket wrench, and a screwdriver. The valve is supplied as a standalone part and does not include additional accessories.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Leaking | Water Filling Issues
This part works with the following products:
Washer.
This part works with the following products:
General Electric.
Part# WH13X26637 replaces these:
AP6282070, WH13X24058
Customer Repair Stories
Average Repair Rating: 4.4 / 5.0, 3 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Water was dripping into the detergent tray when the unit was off.
Removed the control panel back plate cover. Removed the 3 screws that held the water control valve in place. I then unplugged each solenoid one at a time and plugged it into the new control valve. Once all wires were transferred, I pulled the old valve up and put the new valve on. Then reinstalled the screws that held it down and reinstalled the cover plate. Very simple job !
Other Parts Used:
Richard Bibb from ARLINGTON, TX
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers
25 of 32 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water flowed into the washer all the time, even if unplugged
I removed the back panel at he top of the washer, then remover the two screws that hold the top control panel in place. Then I removed the three screws that held the water valve in place. I removed the valve from the water ports and then disconnected the four electrical connectors. I plugged in the new valve and plugged the valve back into the water ports. Reinstalled the screws, control panel and the back panel. Very easy repair, anyone could do it!
Other Parts Used:
Ricky from GERMANTOWN, OH
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Screw drivers
14 of 14 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Post spin, water was leaking into washer basket from upper rear of cabinet
Unplug washer; turn off hot/cold water valves at wall. Access rear of washer; remove 2 long screws anchoring control panel; remove 3 short screws along top of control panel; remove panel; rotate panel forward to rest on washer top (disconnect orange pressure attached to green computer panel. Blue water valve assembly is obvious! Remove hot & cold inlet hoses from washer (have bucket handy to catch water in hoses). Take picture of old water valve so you can reinstall electrical clips in exact same sequence! Remove 3 short screws that anchor water valve; lift out water valve; disconnect clips; gently life out old water valve. Install new water valve in reverse order.
Use needle-nose pliers as a lever to remove tight electrical clips (they are not designed to come loose easily). Google online videos. Really easy, when you watch a couple videos!
Other Parts Used:
Bill from SEABROOK ISL, SC
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
4 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
11 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Amanda
November 21, 2019
Water is leaking into the tub when washer is not in use. I think I need to replace a water inlet valve. Is this the correct part for that?
For model number GTW685BPL0DG
Hi Amanda,
Thank you for your question. If there is water leaking into the tub when the washer is off, then a component in the water inlet valve, part number PS12171559, has failed and you will need to replace it. Good luck with your repair!
14 people found this helpful.
Was this helpful?
Thank you for voting!
Dan
December 14, 2019
I have a GE washing machine model# gtw680bsj5ws serial # gl909506g. Water is leaking from the top. I believe that it is the water inlet valve. Could you recommend the correct part and part number. Thanks.Dan
For model number gtw680bsj5ws
Hello Dan,
Thank you for your question. The water inlet valve for your model is under part PS12171559. We hope this helps!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Albert
September 27, 2021
I have water leaking from detergent tray area into washer tub when the unit is off. I turned off the water supply to washer and that stopped the leaking. Water drains fine but when water supply is turned on, water continues to leak from detergent tray area. I believe I need to replace the water valve assembly but not too sure before I buy to replace. Never worked on a washer before please let me know If I’m correct?
For model number GTW680BSJ5WS
Hello Albert, Thank you for the question. We would agree the Port on the Valve for the Dispenser is "stuck" open and allowing water through even when the appliance is not in use. This would require the Valve to be replaced. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Russ
February 14, 2020
No hot water wash only cold when hot is on i get nothing cold wash fine is it my inlet valve thank you for your time
For model number gtw680bsj6ws
Hi Russ, thank you for your question. Usually when you are having water issues like this the part to check would be your water inlet valve. You can test the valve with a multi meter to be sure. The solenoids should be reading anywhere between 500 - 1500 ohms to be in working order. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Tim
February 20, 2020
I have a h20 supply error message as the machine fills about 1/2 way. It continues to read sensing when filling and then it drains and the h20 supply message comes on as the machine drains out but does not agitate the clothes. I have replaced the lid lock mechanism, the supply lines as well as the quad valve assembly. I am at a loss what the problem could be?
For model number GTW680BSJ4WS
Hi Tim, thank you for question. The H2O supply error would mean that you are having an issue with the supply of water into your appliance. Generally this issue is caused by either the water inlet valve: PS12171559. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Matthew
January 22, 2025
Washing machine tub operates and spins but does not fill with water. Hoses are connected and valves are open. Any idea what could be wrong?
For model number PTW600BSR0WS
Hello Matthew, thank you for contacting us. Based on the description that you have provided, we would recommend checking the water inlet valve, part number PS12171559, to solve the problem. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Susan
February 28, 2019
The tank fills up, but the sensor in the computer part isn’t recognizing the water in the tub. Once the tub is full the computer says h2o supply. I’m assuming that means it thinks there’s no water in the tub. It fills and drains. I am looking to buy this machine (used but broken) for our grandson. How old is this model?
For model number GTW750CSL0WS
Hi Susan, thank you for your question. Usually when you are having water level issues then you may want to take a look at your water level pressure switch. Which in your case is part of your wiring harness. I have listed that part down below for you. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Tom
June 15, 2025
I have two problems with my washer. 1) The fabric softener is not be dispensed during the cycle, maybe not getting water to flush it out????? 2)Water is dripping in the tub after the cycle. completes. Will it fix both issues if I replace the water valve in the washer?
For model number GTW680BSJ5WS
Hello Tom, thank you for your inquiry. Yes, both of the issues you described could most probably occur due to a malfunctioning water inlet valve. We would recommend checking the water inlet valve, part number PS12171559, to solve the problem. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Deenyna
March 23, 2025
My GE washing machine is leaking from the upper back. Water doesn’t go into the machine it is just leaking. Is it the valve that i need to change?
For model number GTW580BMROWS
Hi Deenyna,
Thank you for your question. If water is leaking from from the upper back of the washer, check and make sure that the inlet hoses are tightly secured and that they are not cracked or damaged. Check the water inlet valve for cracks or other damage that may cause water to leak from it. If these parts show any signs of damage, they will need to be replaced. We hope this helps!
Water keeps dripping into basket. We’ve shut off water and unplugged the washer but keeps dripping. What do you recommend for the correct part to fix this?
For model number GTW685BSLOWS
Hi Lisa,
Thank you for your question. If water is leaking into the washer when it is not in use, a component inside the water inlet valve has failed and it will need to be replaced. The part number listed under your model number for the water inlet valve is PS12171559. If you would like to place an order for it, please call our customer service line and anyone will be happy to assist you. We look forward to hearing from you!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
