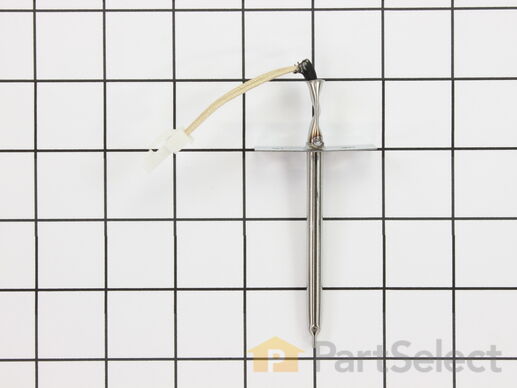

Range Temperature Sensor WPW10131825

Sensor replacement was removing 2 screws and gently pulling on old sensor until the clip comes out. Secured the other end of the wires so that it did not fall back inside. Then connected the new sensor clip to the oven wire, then gently returning wire into oven, and then screwing the sensor into place.
The baking element was easier than the sensor. Removed the 2 screws holding the element into the back bottom of the oven, and pulled the element forward to disconnect from clamps. Inserted new element into clamps and screwed it in. ***NOTE that there will be a smell from the new element. This smell is normal. If the smell continues after a couple minutes stop the oven and wait an hour before reattempting.

I followed instructions from the videos provided on the Part Select site. As with many such appliances, parts are interchangeable between brands. this unit is a KitchenAid but Whirpool,Kenmore parts interchange...Access from the front is all that's needed however and the only tool required was a phllips head screw driver...the only negative surprise (which the video warned about but I ignored) was the risk of the element leads drawing back through the holes, which 2 did. Save yourself that trouble by securing the wires to the back oven wall with a small strip of duct tape until you're ready to re-attach them to the new element. This necessitated removing the oven entirely for access to the back; the most time consuming aspect being removing/replacing what seemed like 20 odd screws holding the back cover in place! If not for that mistake, entire job would have been under 30 minutes. Well worth the effort and would do it again!

Replaced oven temp sensor, removed oven door and interior racks for easy access to oven upper rear sensor access. Used philips head screw driver to remove both screws, gently pulled old senor out of reat oven wall until electrical connector clear of rear wall, disconnected connector, connected new sensor and gently pushed wiring and connector back into opening, reinstalled door and racks. Ran open thru cycle and used oven thermometer to check temp. fast easy install

Remove rear panel - remove sensor from inside - unplug from rear - reverse to install - did not fix problem

I found that what was keeping the old temp sensor electrical connection attached to the stove-side connection was a little tab. It wasn't obvious that that was the thing that was keeping the connection secure but there weren't any other alternatives. So pushing the tab up with the metal probe (just a narrow rigid metal wire) allowed me to pull the connection apart.

All this takes place way at the back of the oven so its difficult to fiddle with a screwdriver and the retaining screws at arms length. Putting a bit of scotch tape around the screw to keep it attached to the screwdriver kept it from falling off. My hand was a bit shaky extended like that so that was the way to go.

Bottom line, if your oven won't reach or hold the temp you dial in on the control panel it's the temperature sensor. Now if I set it for 300 deg. that's what I get.

Pulled the stove out, unscrewed the back and plugged the new thermostat in. Screwed the back back on
