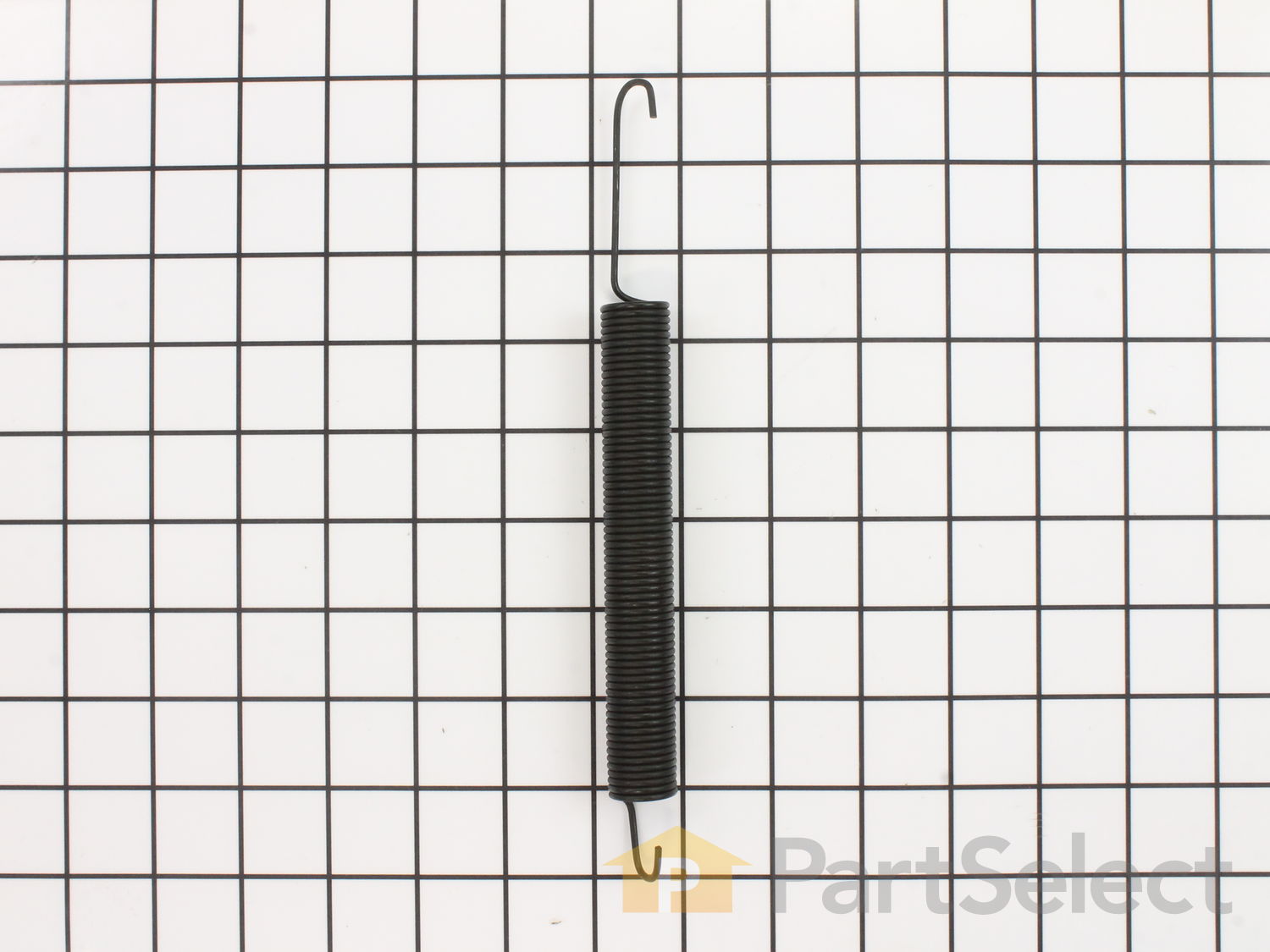

Dishwasher Door Spring WP99002598

took screws our of side trim and top trim, decreased height on leveler legs and pulled dishwasher from the cabinet, replaced cables and springs from both sides on the door, lubed door hinges cleaned everything under dishwasher re-inserted and re-installed trim screws. took around an hour with clean up.

I bought 2 new new door springs and just replaced both left and right. Just have to pull out the dishwasher about 1/3 to its original position to be able to fully open the door and replace springs located on the side. This model is not complicated . Its very easy to replace parts that are broken. Don't forget to TURN OFF your CIRCUIT BREAKER

Unscrewed dishwasher from counter and pulled it out from under the counter a few inches. Looked at the side of the dishwasher with the remaining good spring and saw how it was attached: One end was hooked to a little tether strung around a pulley, the other to one of a few steel slots. Copied that side for the new spring and works fine now.

Removed screws holding the dishwasher on the side of the cabinet.
Removed the screws from the bottom plate of the dishwasher.
Pulled out the Dishwasher from under the cabinet about 1 foot .
Removed broken Spring from left side of bottom holder making sure not to drop the plastic swivel arm from the bottom metal bracket.
Put the new spring, short loop side end in the plastic swivel arm and expand the long side spring end to the upper bracket holder. Their are 4 different tension slots depending upon how tight you want the front door to open or close. I put the spring on the 2nd slot
Put dishwasher back under the counter, screwed bottom plate & side in.

It was very easy to replace the broken door spring, I received the new spring from PartsDirect in two days. I removed the 6 screws holding the dishwasher to the counter and pulled it out from the counter about a foot, no need to disconnect the power and water. I simply replaced the broken spring using the right side spring as a guide. I pushed the dishwasher back in and reinstalled the screws. I completed this repair in less than 20 minutes.
