This part is the replacement hot water valve for your washer. It is approximately 2-1/2 inches by 3-1/2 inches, and the valve head is approximately 1 inch in diameter. The hot water inlet valve in your washer connects to the water source and solenoid wires, and ensures the tub has the right amount of hot water entering it. If your washing machine continues to fill after it is full, or if it fills slowly, you may need to replace this valve. Another indication that your valve is damaged and will need to be replaced, is if you notice it is leaking when the washer fills up. Before you begin this repair, be sure to disconnect the water and power sources from your washer. This part is sold individually and is an authentic OEM part.
How Buying OEM Parts Can Save You Time and Money
Part Videos

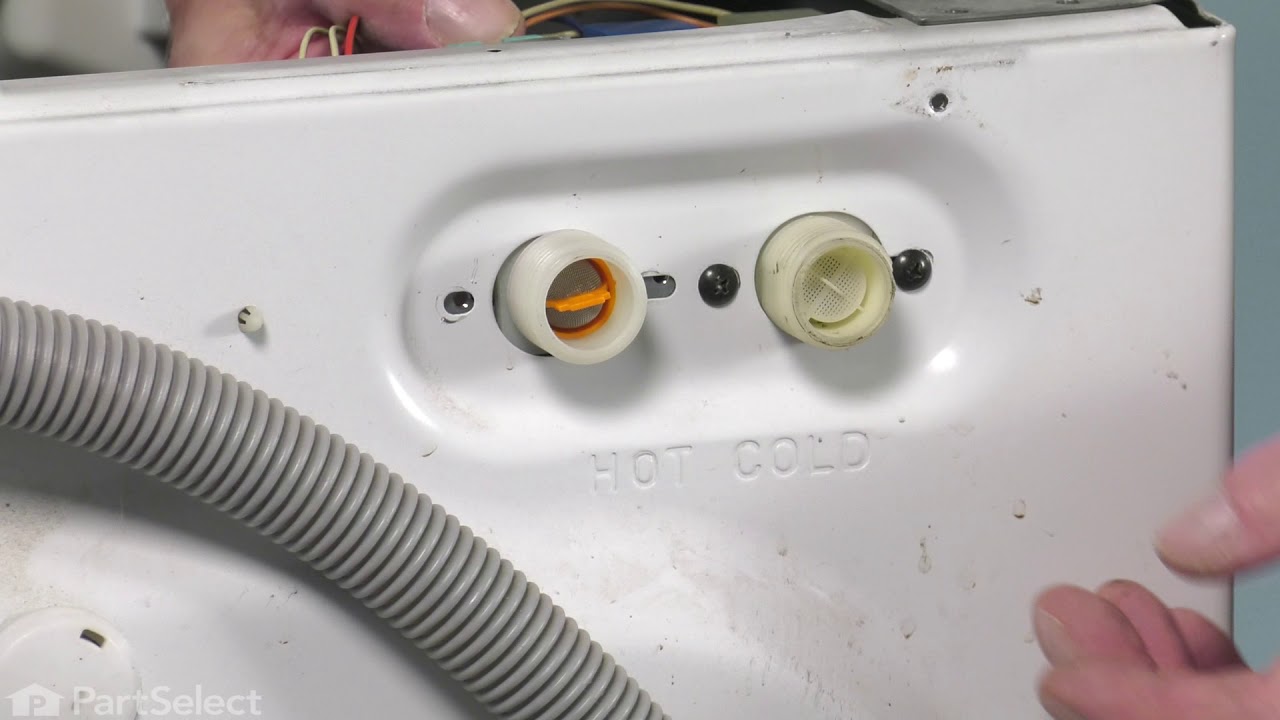

Replacing your Maytag Washer Hot Water Valve
Troubleshooting
This part fixes the following symptoms:
Leaking
This part works with the following products:
Washer.
This part works with the following products:
Maytag, Amana, Inglis, Samsung.
Part# WP34001131 replaces these:
AP6008402, 34001131, DC62-30314H
Customer Reviews
Average Rating:
★★★★★
★★★★★
2 Reviews
5.0
Filter By Rating:
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Catherine C - April 3, 2019
Verified Purchase
very easy repair, online video was very helpful!
my washing machine is like new again and I feel great that I could fix myself, thank you so much!
★★★★★
★★★★★
JAGDEEP R - June 5, 2019
Verified Purchase
Easy repair; quality parts!
My appliance is back in working order!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
2 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Joseph
April 20, 2018
The washer doesn’t stop filling water during the final rinse/spin cycle. Flooding as a result.
For model number NFW7200TW
Hi Joseph,
Thank you for your question. The parts that you will want to check are your water inlet valves and your water pressure switch and the pressure switch hose. Check to see if there is any holes or tears in the hose. That would effect how your appliance fills with water. You can check the other two parts with a multi meter. I hope that helps. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Eyvonne
March 5, 2025
After each complete wash /spin cycle there is water in the bleach and softener compartments AND there is a small amount of water on the floor. What part may need replacing
For model number MAH2400AWW
Hello Yvonne, Thank you for contacting us. First check and clean the dispenser to make sure it is not clogged. Also check for a leak or clog in the dispenser inlet hose. If that does not fix the issue, then we recommend testing the water inlet valves with a multimeter. We hope this helps you.
This water inlet valve assembly is for washers.
Water inlet valve assembly controls the water flow into the washer. The assembly may include multiple parts; refer to your parts diagram for a complete list of parts inc...
