Part Location Diagram of WP3196548 Whirlpool Safety Thermostat
See part 17 in the diagram
Replacing your Whirlpool Range Safety Thermostat
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.ca

Safety Thermostat

★★★★★
★★★★★
9 Reviews
$51.36
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS11740991
Manufacturer Part Number WP3196548
Manufactured by Whirlpool
Product Description

Safety Thermostat Specifications

This part is used as a safety feature. If your range overheats this part will shut the range down.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

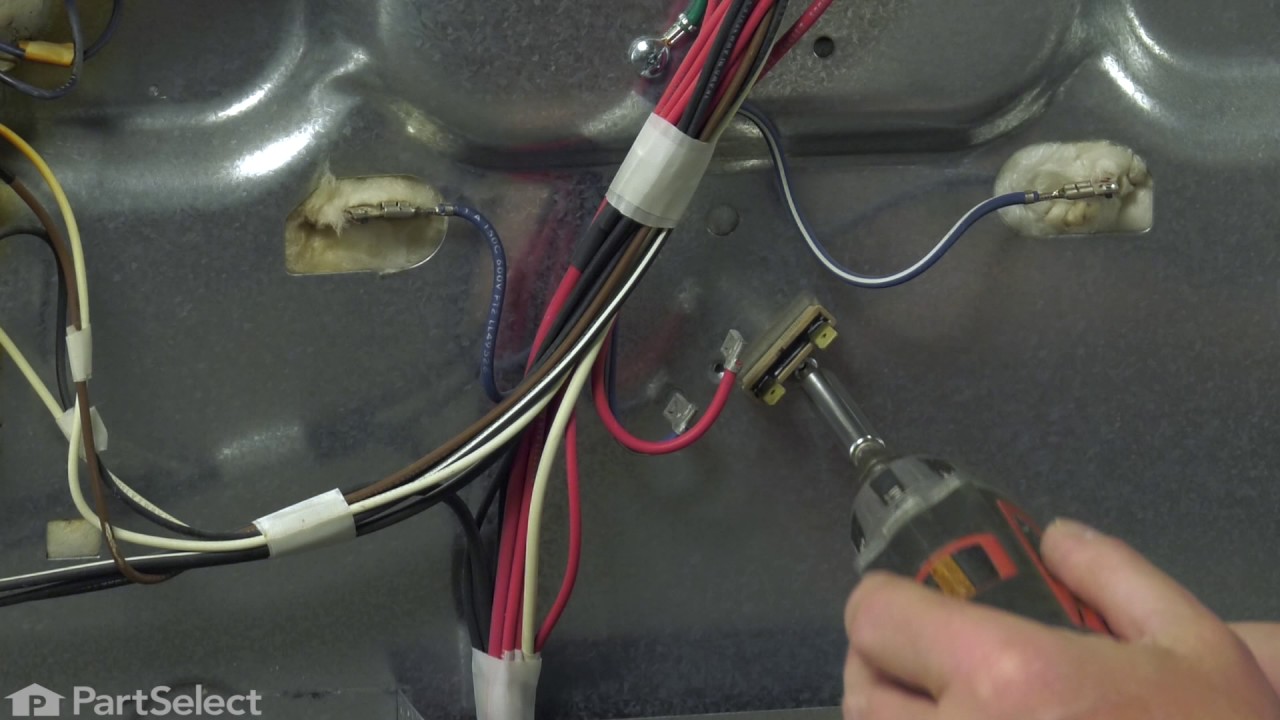

Replacing your Whirlpool Range Safety Thermostat

Replacing your Whirlpool Range Safety Thermostat
Troubleshooting
This part fixes the following symptoms:
Little to no heat when baking | Oven is too hot | Element will not heat | Little to no heat when broiling
This part works with the following products:
Range, Microwave Oven Combo.
This part works with the following products:
Whirlpool, Maytag, Kenmore, Amana.
Part# WP3196548 replaces these:
AP6007866, 313214, 3147620, 3196548
