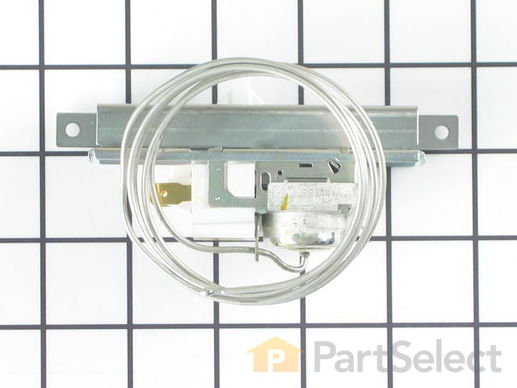

Refrigerator Thermostat WP2315562

Remove the front panel strip where the temperature adjustment lights show, use a thin screw driver to pot the strip out along the top. Use a nut driver to remove the control panel which contains the light, two bolts on the under side, two bolts on the front after the panel strip was removed. The control panel will hang down enough with the wires attached to allow access to the thermostat. Use a Phillips screw driver to remove the side cover where the temperature probe runs along the left hand side to the unit, one screw. You will find the temperature probe inside plastic tubing running to the back of the unit where it is wrapped around a Styrofoam holder with three plastic retainer clips on the top and bottom. Unplug the thermostat from its electrical connection. You may want to unplug the unit’s wall plus as this is 110 volt connection. Remove the two screws holding the thermostat to the plastic control panel; remove the fiber optic connection to the light strip that runs across the top of the thermostat. Remove the temperature probe from the 6 clips and pull the entire unit out. Remove the plastic tube from the old temperature probe and slide it over the probe from the new thermostat. The probe is approximately 26 inches long and you must take care not to crimp it as you slide it in the plastic tubing(warm the plastic tube with a hair dryer to reduce stiffness at the bend). Plug the wires into the new thermostat and reassemble.

refridge never cooled good,replaced termostat and circuit board, works great probably over kill but better than waiting on parts. Very easy job, drop over head control panel , remove thermo very carefully after unhooking linkage to freezer vent to fridge, be carefull not to bend linkage, you will also have to remove 2 covers that shield thermo conduit for thermo that go to back of fridge. Board is very easily replaced when sitting on table but 1 plug gave me problems trying to release the plug, {hint} move side to side instead of moving up and down . The themo stat sencing tube install is kind of trickie too , just straighten the tube totally before trying to remove or reinstall the new sencing tube, you can form it during restlall in the fridge . It was good to see that fridge cooling back down to 34 degrees on less than mid setting. YAHOOOOOO

First, verified power supply. I have power at wall outlet, no power at compressor. Also noticed no condenser fan operation. Searched YouTube and watched a few diagnostic videos of how to test for proper operation of my model. Dropped the control panel down to reveal the thermostat switch and control board. Wiggled thermostat knob and compressor would work intermittently. Thermostat bad internally. Removed wiring connections, removed cover over temp.probe. slowly removed capillary tube. Removed plastic sheath from tube. Take your time installing new capillary tube into plastic sheath as not to kink and damage tube. Route the new tube back into position that the old one was in. Reinstall covers. NOTE: My wiring terminals on the new switch were in different locations but the switch was the same dimensions. I used a multi-meter to determine the correct wire locations on new switch and installed. Reconnected power and all works well now.

Removed shelves from frig and freezer. Removed cover over evaporator core in freezer and removed loom. Replaced thermostat by cutting out and connecting new part with connectors. Remove console in frig and replaced thermostat for frig temp. Also had to remove channel to expose freezer rod and capillary tube for thermostat. Took extra care not to kink tube. Reassemble both sides and adjusted correctly and plugged in. Both settings at normal and frig is repaired now. Obviously it took awhile for frig to get completely back to freezing and cold temp. Remember frig has not ran for days. Compressor cycles correctly now also.

Followed easy installation instructions which were helpful

Removed old thermostat and installed new one.
