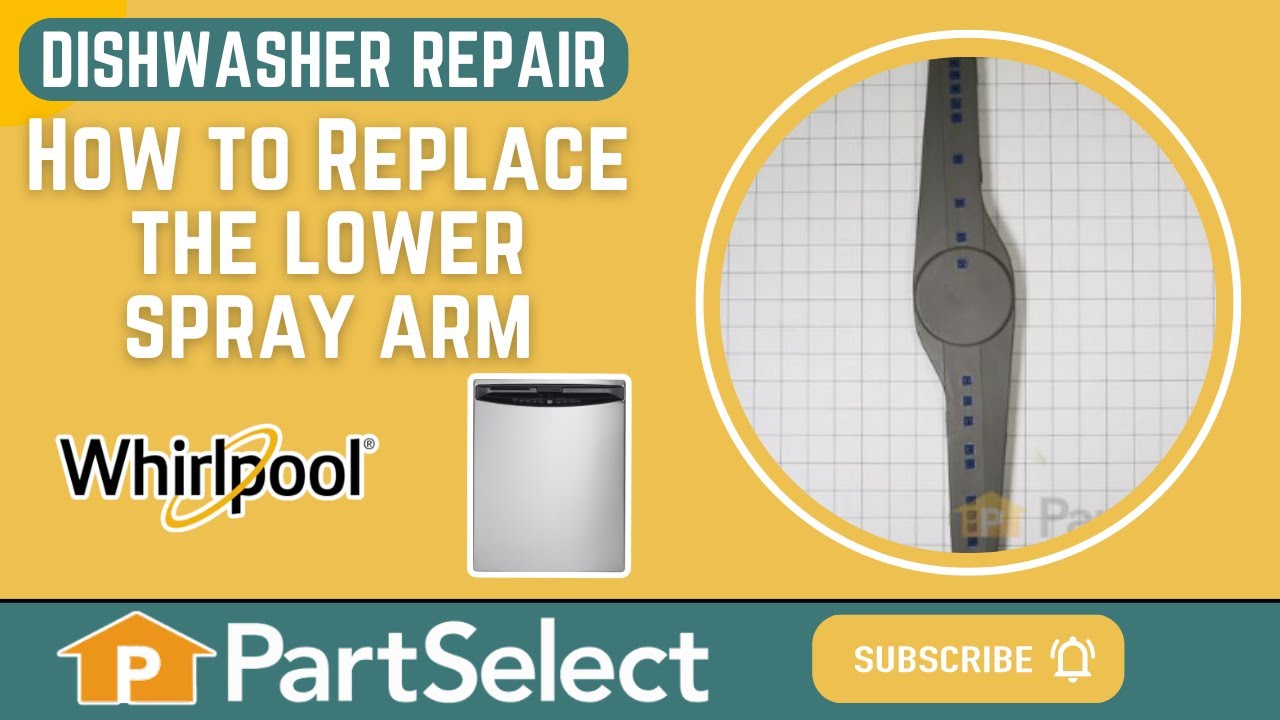

Replacing your Whirlpool Dishwasher Lower Spray Arm
Troubleshooting
This part fixes the following symptoms:
Leaking | Not cleaning dishes properly
This part works with the following products:
Dishwasher.
This part works with the following products:
Whirlpool.
Part# W10837249 replaces these:
AP5988717, W10629546, W10838302
Customer Reviews
Average Rating:
★★★★★
★★★★★
38 Reviews
5.0
Filter By Rating:
5 Stars
37
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Mitchell K - August 11, 2024
Verified Purchase
Easy repair, very quick, no more water leak
I had water leaking out the bottom of the dishwasher door so I ordered a lower spray arm. The part came quickly and was in good condition. The repair took less than 30 seconds. Problem solved!
★★★★★
★★★★★
Guilherme R - December 31, 2023
Verified Purchase
Very easy to replace and solved a leak problem
My machine was leaking in the front in one side of the port, and it was not cleaning well. I figure out my arm was a broken and not working properly, it was opening in the side because of the pressure of the water. So I just replace it for a new one and it solved both issues. It started washing well again the dish and it was not leaking anymore. You can check if your arm is the issue by putting a camera inside the dishwash to record the process. You'll see if it's turning properly and if the water is throwing only from the roels in the arm, not in the side.
★★★★★
★★★★★
Michael L - March 10, 2023
Verified Purchase
Easy fix
This stopped my dishwasher from leaking
★★★★★
★★★★★
Steve M - October 26, 2023
Verified Purchase
Easy
Quick delivery, good price. Dead simple to install and solved my problem (leaking dishwasher due to old arm being split)
★★★★★
★★★★★
Robert B - January 11, 2024
Verified Purchase
OEM part
was delivered fast ,fit like a glove
★★★★★
★★★★★
Robert V - June 4, 2023
Verified Purchase
Easy to purchase and easy to install. Worked as expected and now my dishes are clean again
Worked perfectly
★★★★★
★★★★★
Paul K - September 18, 2022
Verified Purchase
Easy repair, fit right in!
This was very easy to order, and came promptly-even over a long weekend! It was an easy fix to get our dishwasher working properly again. I installed the arm, and voila-clean dishes=happy wife!!
★★★★★
★★★★★
Adam M - June 12, 2024
Verified Purchase
Easy to install and worked
After reviewing the website to see others have the same issue I follower their lead, order new spray arm and once installed fixed the leaking door issue.
★★★★★
★★★★★
Patrick M - June 6, 2020
Verified Purchase
Clean dishes
This was user error -- I did not put the filter back in properly so spray arms got dirty -- I could not get the lower one clean - the replace worked great............................................................................................ Cheers, Patrick
★★★★★
★★★★★
William L - January 21, 2021
Verified Purchase
As orders , easy install
New part that simply locks in. This was an exact replacement as the factory part. No troubles at all. Thanks oh and the call-in agent I spoke to was fantastic. Great service, thanks
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 5.0 / 5.0, 5 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Water coming out both sides of the bottom of the door.
Replaced Arm spray... Turn it left and it comes off......place new spray in .. turn it right...and it's in...make sure it moves freely.......Arm wasn't turning and water was consistently hitting the front door.....I also replaced the door seal...
Other Parts Used:
Michael from HAMILTON, NJ
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
8 of 10 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Poor to no cleaning lower basket
lower wash arm cracked by spinning into items hanging out of bottom of basket. part twists and snaps right in. glue did not fix.
Other Parts Used:
jeffrey from HOUSTON, TX
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishwasher was leaking a lot, 1-2 cups of water
Changed the seal first, very easy, no tools needed either. Helped a little, but still leaking a lot. Changed the lower spray arm and that did it. The video I watched before changing the seal helped a lot, definitely do that first.
Other Parts Used:
Douglas from BELFORD, NJ
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dishes were not getting cleaned and water was coming out the bottom of the door
The top and bottom parts of the lower wash arm were separating. This caused water to spray out the ends of the wash arm and come out the front of the dishwasher. In addition this water was not spraying upward resulting in dishes not getting cleaned. Took me a while to figure this out but the repair was simple.
Lower spray arm had a small seam split forcing waves of water against the lower door causing water to leak out the door bottom.
After replacing the door seal and the dishwasher still leaked a lot of water out the bottom of the door, I read posts by a couple of other DIY who said the lower spray arm can split at the seam and cause this. One post noted it is very difficult to determine if this is the problem, that you may have to take the blade of a screwdriver and try to pry the seam apart gently to see if a gap does appear with very little force being applied. If so, then just imagine what happens when that very hot water makes that plastic more flexible and then the seam opens and forces waves of water against the lower door. I could see a small seam split using that strategy and when I replaced the spray arm, my leak stopped. I don't regret replacing the door seal as it had a couple of small tears and hard water deposits all over it, so it was time to do that even though it was not the culprit for the extensive leak. The arm is SO EASY to replace, just twist the plastic nut under it and it pops right off. Put the new one on and twist the nut the other way and it secures it.
Other Parts Used:
Cameron from DEFIANCE, OH
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
6 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Peggy
May 1, 2023
I need lower spray arm. White plastic piece in middle is not holding. Does arm come with this piece or is it separate? Thanks
For model number WDT970SAHZ0
Hello Peggy, thank you for your question. On the backside of the arm is the male connector( white round plastic) that allow it to fit on the Pump and Motor Assembly below it. Good luck with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Peggy
May 8, 2023
I ordered and received this lower spray arm and thought the white male part was included. I think that is what I need as it comes out easily and will not hold the spray arm in place. Please advise. Thanks
For model number WDT970SAHZ0
Hello Peggy, thank you for the question. According to our research, you may need to buy the upper wash arm support, part number PS16660558, to fix the issue. We hope this helps!
How does one know if the lower arm is cracked and if it is will that make the door leak water?
For model number WDTA50SAHW0
Hello Allen, Thank you for the question. If the Spray Arm is cracked you will be able to visually see the crack. We are not sure this would cause a leak however. We suggest checking the Lower Door Seal for wear or damage. We hope this helps!
can i take apart the lower spray arm? if so how do i do that? there is something stuck in there and it is not cleaning properly. Thank you
For model number WDTA50SAHW0
Hi Sara,
Thank you for your question. There is no way to take the lower spray arm apart. If the lower spray arm is clogged, try soaking it in a solution of warm water and vinegar and use a fine pin to remove any blockages from the spray holes. If this does not help, you will need to replace the lower spray arm. If you need to place an order for the lower spray arm, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
Was this helpful?
Thank you for voting!
Pam
May 13, 2022
Our dishwasher is now making a thumping noise. It thumps whether it’s run empty or full. Could it be it needs a new part, a new arm?
Thanks
For model number WDTA50SAHB0
Hello Pam, Thank you for your inquiry. This issue can be caused by one of the spray arms hitting something as the dishwasher is washing. Check the middle and lower spray arms for any obstructions or loose connections. We also recommend checking the door springs, the door balance kit, and the pump and motor assembly. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Dishwasher is leaking from the bottom of the door. Have replaced the lower door seal and the inlet control valve. Set the front to back level so that it is slightly inclined to the rear. Reduced the amount of the water leaking but did not eliminate it. Next will replace the lower wash arm. If the leak still persists do you have any ideas or is it time to call a repair technician? Thanks.
For model number WDTA50SAHV0
Hi David, thank you for the question. If you find the dishwasher leaking from the bottom of the door, a clogged drain is usually the reason. Located at the base of the dishwasher, food particles, soap residue, and other debris can cause clogs that prevent water from draining. A clogged drain can lead to puddling inside the dishwasher that eventually leaks out the bottom of the door. If that is not causing the issue and the lower spray arm does not solve the problem, then you may need to check the overflow control switch, part number PS11750031. If it is faulty, you may need to replace it. We hope this helps!
This is a replacement middle spray arm in your dishwasher. You will find your middle spray arm mounted on the bottom of the middle dish rack. The upper spray arm rotates and sprays water during the operating cycle. If yo...
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
This front load washer cleaner removes odor-causing residue. Use it once a month and it will keep your machine fresh and clean. Package comes with 3 tablets.
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Make your cooktop shine with Frigidaire ReadyClean Glass and Ceramic Cleaner. Our scratch-free, streak-free formula removes smudges, grease, burnt-on food, dirt and oil, while protecting and polishing to repel dust and d...
Affresh® Dishwasher Cleaner is the #1 recommended cleaner by Whirlpool, KitchenAid, and Maytag brands, designed to remove limescale and mineral build-up that can affect your dishwasher’s performance. These powerful table...
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11727921
Manufacturer Part Number: W10837249
